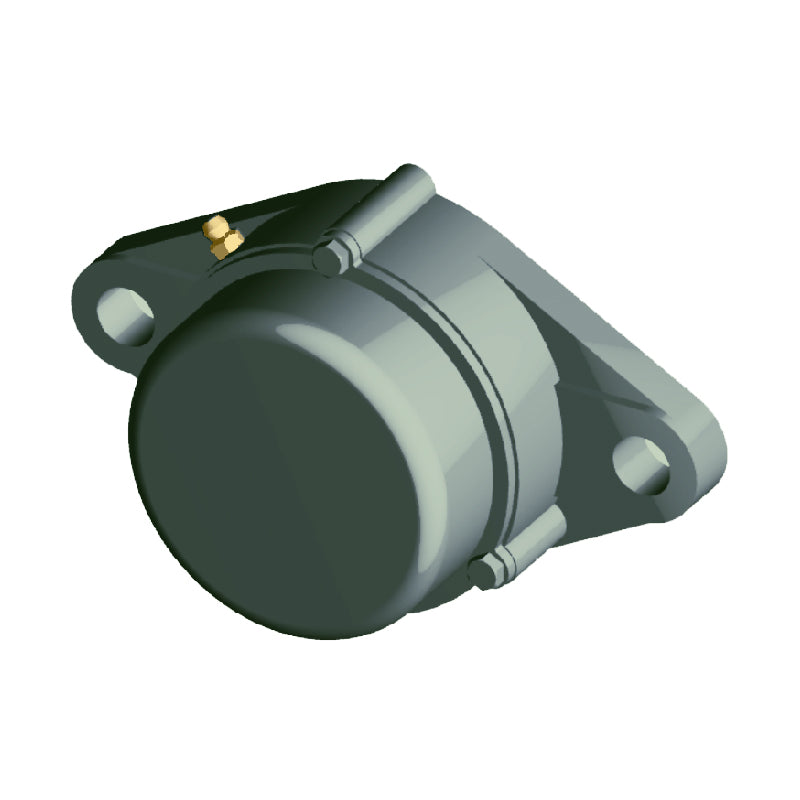

NTN CM-UCFL206D1 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCFL206D1 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
CHF 50.00
ex VAT
Regular price
Sale price
CHF 50.00
ex VAT
In stock
Price Break
3+
CHF 43.86
4+
CHF 42.09
9+
CHF 41.20
19+
CHF 39.87
49+
CHF 38.98
99+
CHF 36.77
499+
CHF 31.01
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCFL
- Bolt Hole Centres:
- 117mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 30mm |
| H | 148mm |
| J | 117mm |
| A<sub>2</sub> | 18mm |
| A<sub>1</sub> | 13mm |
| A | 31mm |
| N | 16mm |
| L | 80mm |
| B | 38.1mm |
| S | 15.9mm |
| t<sub>2</sub> | 11mm |
| A<sub>5</sub> | 56mm |
| L<sub>1</sub> | 85mm |
| L<sub>2</sub> | 40mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 21.6 kN |
| Static load C<sub>0r</sub> | 11.3 kN |
| Fatigue load limit C<sub>u</sub> | 0.795 kN |
| --- | Unit information |
| Mass | 1.2 kg |
