SKU: CM-UCP214D1-NTN

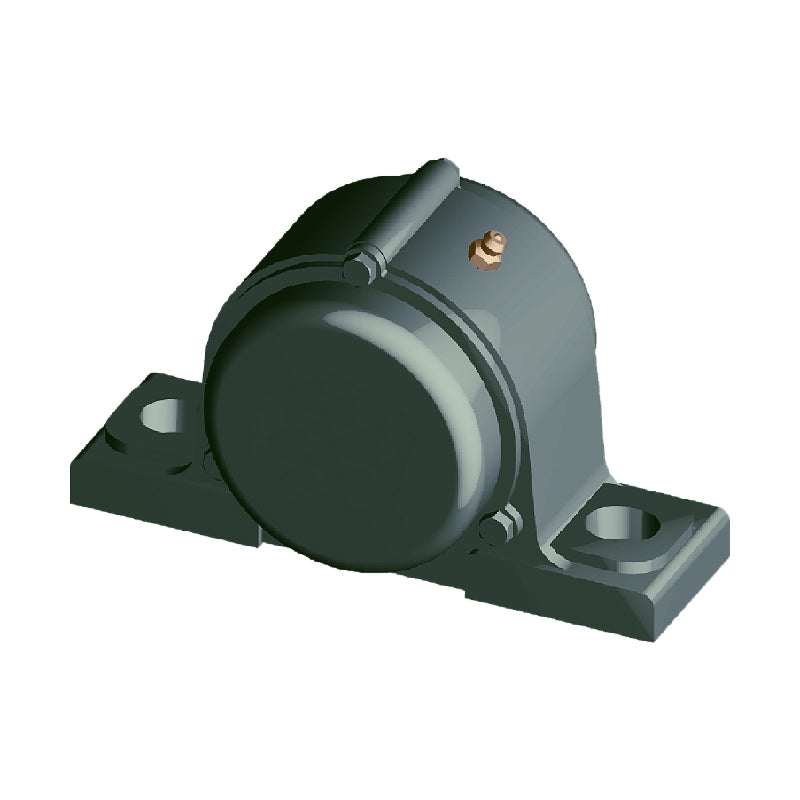

NTN CM-UCP214D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCP214D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
CHF 199.00
ex VAT
Regular price
Sale price
CHF 199.00
ex VAT
In stock
Price Break
3+
CHF 175.46
4+
CHF 168.37
9+
CHF 164.82
19+
CHF 159.51
49+
CHF 155.96
99+
CHF 147.10
499+
CHF 124.06
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCP
- Bolt Hole Centres:
- 210mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 70mm |
| H | 79.4mm |
| L | 266mm |
| J | 210mm |
| A | 72mm |
| N | 25mm |
| N<sub>1</sub> | 28mm |
| H<sub>1</sub> | 27mm |
| H<sub>2</sub> | 157mm |
| L<sub>1</sub> | 77mm |
| B | 74.6mm |
| S | 30.2mm |
| t<sub>2</sub> | 17mm |
| H<sub>3</sub> | 162mm |
| A<sub>5</sub> | 135mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 69 kN |
| Static load C<sub>0r</sub> | 44 kN |
| Fatigue load limit C<sub>u</sub> | 3.45 kN |
| --- | Unit information |
| Mass | 8.4 kg |
