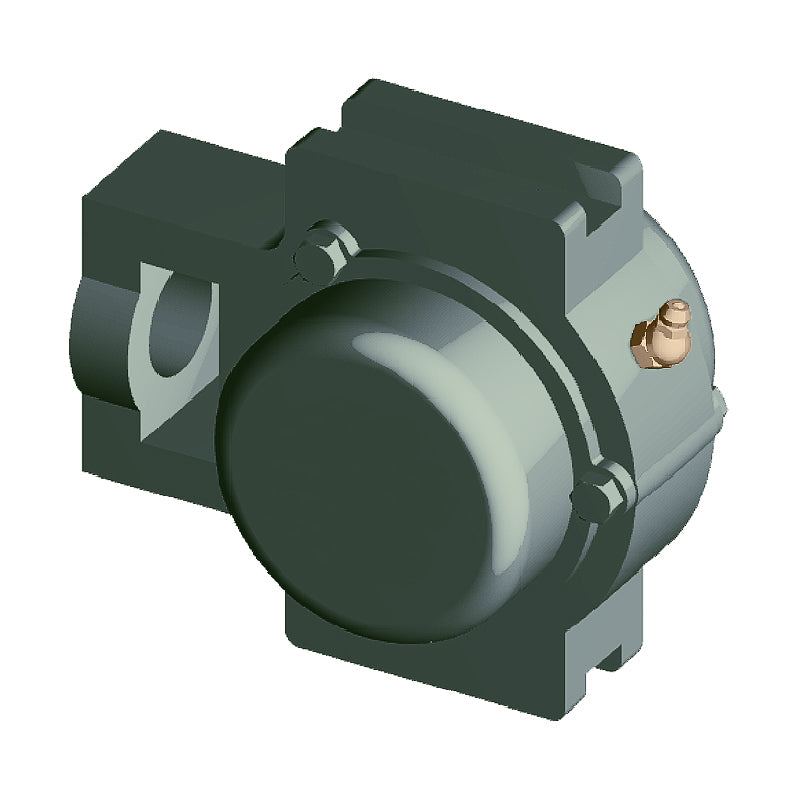

• NTN CM-UCT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
1 1

SKU: CM-UCT212D1-NTN

NTN CM-UCT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days

NTN CM-UCT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
CHF 111.00 ex VAT
CHF 111.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 88.36
4+ CHF 83.40
9+ CHF 82.40
19+ CHF 81.41
49+ CHF 80.42
99+ CHF 79.42
499+ CHF 74.46
999+ CHF 73.47
1999+ CHF 72.47
2999+ CHF 71.48
4999+ CHF 69.50
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
60mm
Style:
UCT
Technical
--- Dimensions
Shaft diameter 60mm
N<sub>1</sub> 32mm
L<sub>2</sub> 21mm
H<sub>2</sub> 102mm
N<sub>2</sub> 64mm
N 35mm
L<sub>3</sub> 102mm
A<sub>1</sub> 22mm
H<sub>1</sub> 130mm
H 146mm
L 194mm
A<sub>2</sub> 42mm
A 64mm
r 75mm
L<sub>1</sub> 119mm
B 65.1mm
S 25.4mm
t<sub>2</sub> 12mm
L<sub>4</sub> 194mm
A<sub>5</sub> 115mm
--- Load rating
Dynamic load C<sub>r</sub> 58 kN
Static load C<sub>0r</sub> 36 kN
Fatigue load limit C<sub>u</sub> 2.83 kN
--- Unit information
Mass 6.1 kg
