SKU: CM-UCT214D1-NTN

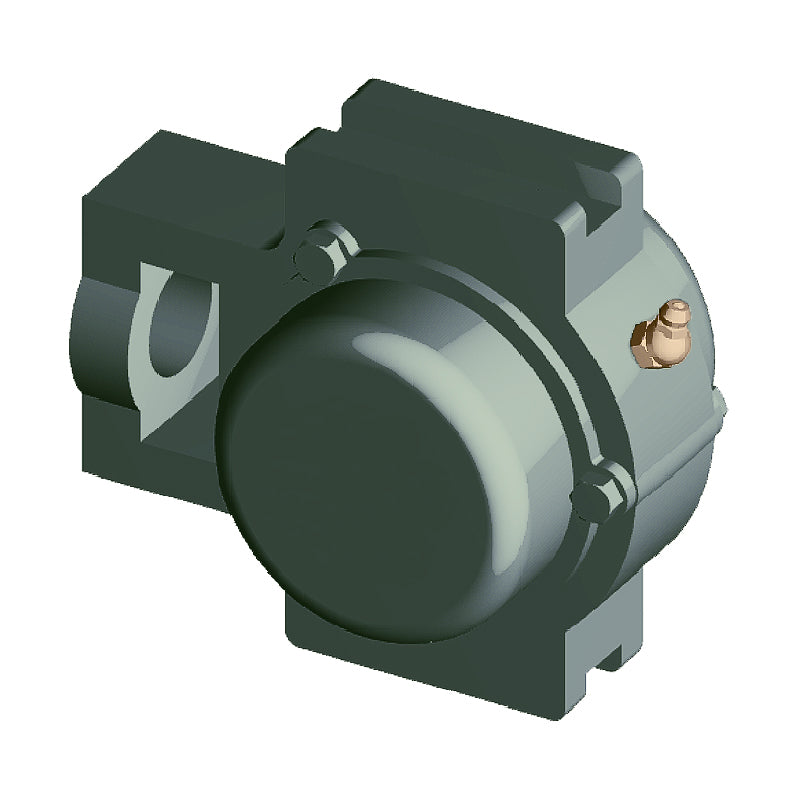

NTN CM-UCT214D1 Metric Cast Iron Take Up Unit with 70mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCT214D1 Metric Cast Iron Take Up Unit with 70mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
CHF 248.00
ex VAT
Regular price
Sale price
CHF 248.00
ex VAT
In stock
Price Break
3+
CHF 219.49
4+
CHF 210.62
9+
CHF 206.19
19+
CHF 199.54
49+
CHF 195.10
99+
CHF 184.02
499+
CHF 155.20
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 70mm |
| N<sub>1</sub> | 32mm |
| L<sub>2</sub> | 23mm |
| H<sub>2</sub> | 111mm |
| N<sub>2</sub> | 70mm |
| N | 41mm |
| L<sub>3</sub> | 121mm |
| A<sub>1</sub> | 26mm |
| H<sub>1</sub> | 151mm |
| H | 167mm |
| L | 224mm |
| A<sub>2</sub> | 46mm |
| A | 70mm |
| r | 87mm |
| L<sub>1</sub> | 137mm |
| B | 74.6mm |
| S | 30.2mm |
| t<sub>2</sub> | 17mm |
| L<sub>4</sub> | 224mm |
| A<sub>5</sub> | 135mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 69 kN |
| Static load C<sub>0r</sub> | 44 kN |
| Fatigue load limit C<sub>u</sub> | 3.45 kN |
| --- | Unit information |
| Mass | 9.2 kg |
