SKU: CNB-20
Major Brand CNB20 Slotted Cylindrical Cam Follower 5/8 inch Outside Diameter Allow 7-10 Days
Major Brand CNB20 Slotted Cylindrical Cam Follower 5/8 inch Outside Diameter Allow 7-10 Days
Regular price
CHF 21.00
ex VAT
Regular price
Sale price
CHF 21.00
ex VAT
Equivalent to: CF-5/8 S-20 CR-5/8 CR-10-1
In stock
Price Break
3+
CHF 16.61
4+
CHF 15.67
9+
CHF 15.49
19+
CHF 15.30
29+
CHF 15.11
39+
CHF 14.93
49+
CHF 14.00
59+
CHF 13.81
249+
CHF 13.62
499+
CHF 13.44
999+
CHF 13.06
Description
Description
|

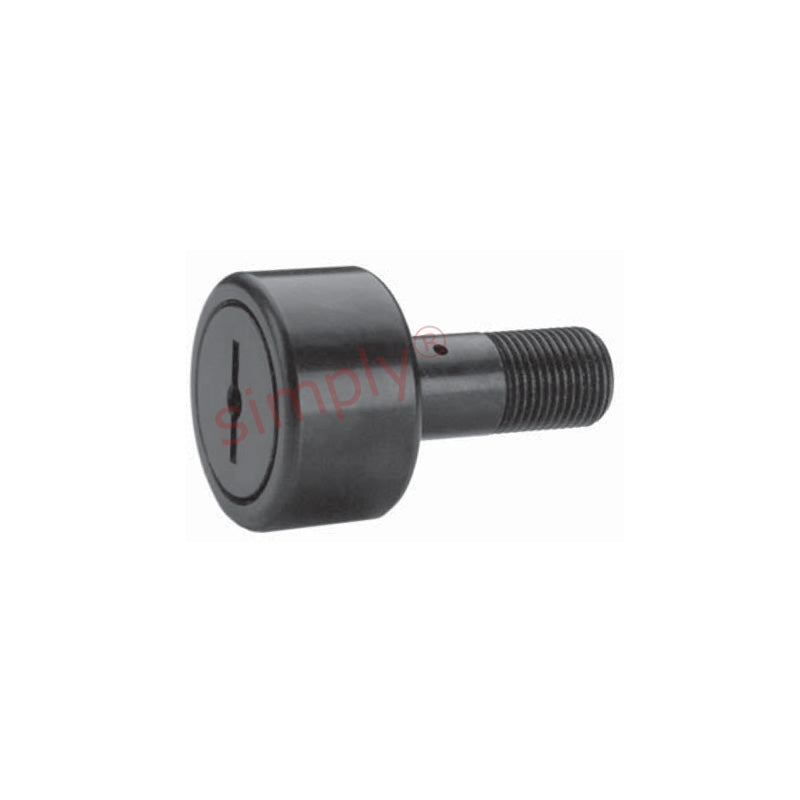

Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Equivalent: CF-5/8 S-20 CR-5/8 CR-10-1
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Width:
- 11.11mm = 0.437 (7/16) inch
- Pitch:
- UNF 1/4-28
Technical
Technical
| A | 0.625 inch |
|---|---|
| B | 0.4375 inch |
| C | 0.25 inch |
| D | 0.75 inch |
| E | 0.312 inch |
| Thread class 2A F | 1/4-28 UNF |
| J | 1/8 inch |
| Min boss diameter | 23/64 inch |
| Recommended bore | 0.25 inch |
| Recommended torque | 35 lbf-in |
| Max static capacity | 1215 lbs |
| Basic dynamic rating | 995 lbs |
