SKU: CNB-20-SB

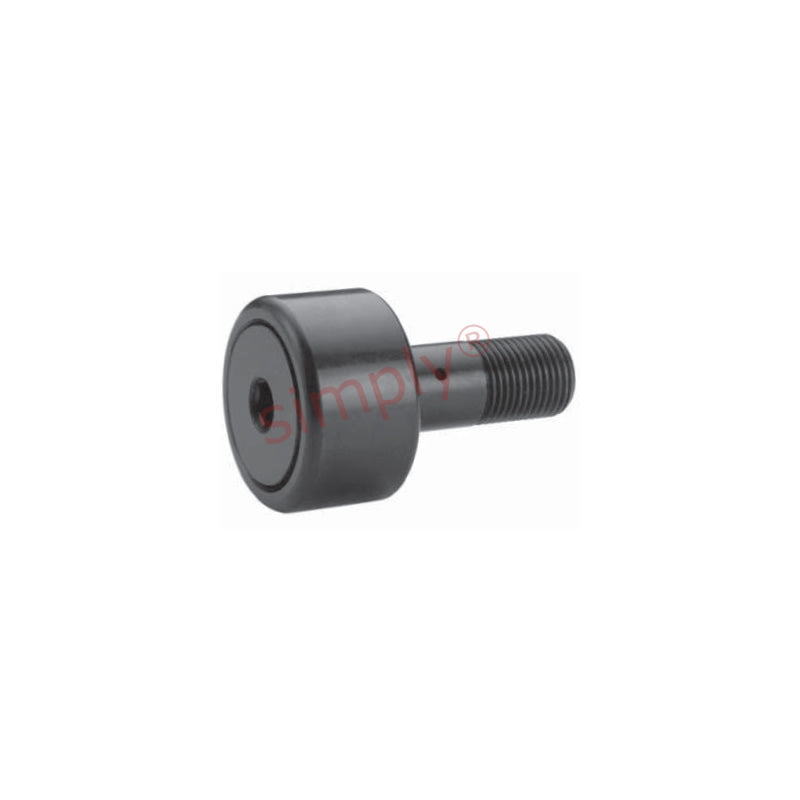

Major Brand CNB20SB Hex Head Sealed Cylindrical Cam Follower 5/8 inch Outside Diameter
Major Brand CNB20SB Hex Head Sealed Cylindrical Cam Follower 5/8 inch Outside Diameter
Regular price
CHF 38.00
ex VAT
Regular price
Sale price
CHF 38.00
ex VAT
Equivalent to: CF-5/8-SB S-20-LW CR-5/8-XB CRSB-10-1 CR10-1VBUU
In stock
Price Break
3+
CHF 29.50
4+
CHF 27.85
9+
CHF 27.51
19+
CHF 27.18
29+
CHF 26.85
39+
CHF 26.52
49+
CHF 24.86
59+
CHF 24.53
249+
CHF 24.20
499+
CHF 23.87
999+
CHF 23.21
Description
Description
|
Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Equivalent: CF-5/8-SB S-20-LW CR-5/8-XB CRSB-10-1 CR10-1VBUU
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Width:
- 11.11mm = 0.437 (7/16) inch
- Pitch:
- UNF 1/4-28
Technical
Technical
| A | 0.625 inch |
|---|---|
| B | 0.4375 inch |
| C | 0.25 inch |
| D | 0.75 inch |
| E | 0.312 inch |
| Thread class 2A F | 1/4-28 UNF |
| Min boss diameter | 23/64 inch |
| Recommended bore | 0.25 inch |
| Recommended torque | 35 lbf-in |
| Max static capacity | 1215 lbs |
| Basic dynamic rating | 995 lbs |
