SKU: CNB-24

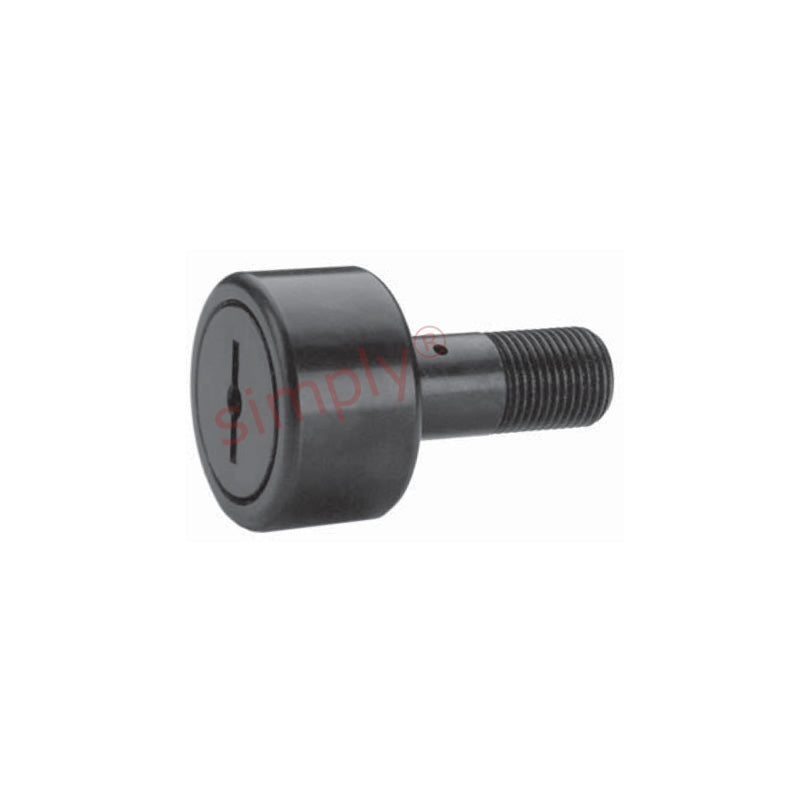

Major Brand CNB24 Slotted Cylindrical Cam Follower 3/4 inch Outside Diameter
Major Brand CNB24 Slotted Cylindrical Cam Follower 3/4 inch Outside Diameter
Regular price
CHF 29.00
ex VAT
Regular price
Sale price
CHF 29.00
ex VAT
Equivalent to: CF-3/4 S-24 CR-3/4 CR-12
In stock
Price Break
3+
CHF 22.70
4+
CHF 21.42
9+
CHF 21.17
19+
CHF 20.91
29+
CHF 20.66
39+
CHF 20.40
49+
CHF 19.13
59+
CHF 18.87
249+
CHF 18.62
499+
CHF 18.36
999+
CHF 17.85
Description
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Equivalent: CF-3/4 S-24 CR-3/4 CR-12
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Width:
- 12.7mm = 0.5 (1/2) inch
- Pitch:
- UNF 3/8-24
Technical
Technical
| A | 0.75 inch |
|---|---|
| B | 0.5 inch |
| C | 0.375 inch |
| D | 0.875 inch |
| E | 0.375 inch |
| Thread class 2A F | 3/8-24 UNF |
| G | 1/4 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 1/2 inch |
| Recommended bore | 0.375 inch |
| Recommended torque | 95 lbf-in |
| Max static capacity | 2065 lbs |
| Basic dynamic rating | 1660 lbs |
