SKU: CNB-32-SB

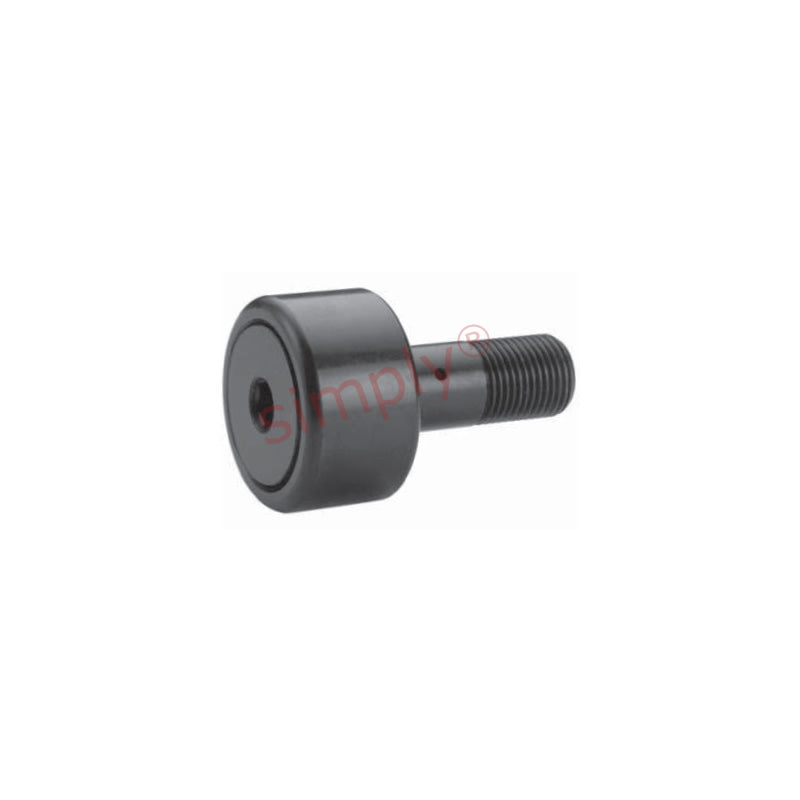

Major Brand CNB32SB Hex Head Sealed Cylindrical Cam Follower 1 inch Outside Diameter
Major Brand CNB32SB Hex Head Sealed Cylindrical Cam Follower 1 inch Outside Diameter
Regular price
CHF 28.00
ex VAT
Regular price
Sale price
CHF 28.00
ex VAT
Equivalent to: CF-1-SB S-32-LW CR-1-XB CRSB-16 CR16VBUU
In stock
Price Break
3+
CHF 21.84
4+
CHF 20.61
9+
CHF 20.37
19+
CHF 20.12
29+
CHF 19.88
39+
CHF 19.63
49+
CHF 18.41
59+
CHF 18.16
249+
CHF 17.91
499+
CHF 17.67
999+
CHF 17.18
Description
Description
|
Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Equivalent: CF-1-SB S-32-LW CR-1-XB CRSB-16 CR16VBUU
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 25.4mm = 1 inch
- Width:
- 15.88mm = 0.625 (5/8) inch
- Pitch:
- UNF 7/16-20
Technical
Technical
| A | 1 inch |
|---|---|
| B | 0.625 inch |
| C | 0.4375 inch |
| D | 1 inch |
| E | 0.5 inch |
| Thread class 2A F | 7/16-20 UNF |
| G | 1/4 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 41/64 inch |
| Recommended bore | 0.4375 inch |
| Recommended torque | 250 lbf-in |
| Max static capacity | 3060 lbs |
| Basic dynamic rating | 2225 lbs |
