SKU: CNB-48

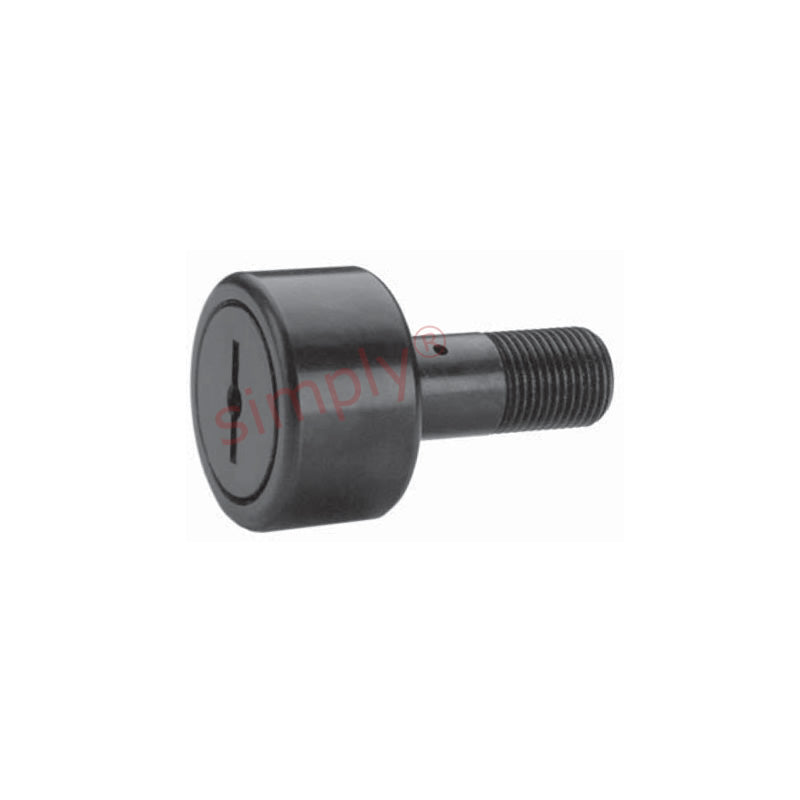

Major Brand CNB48 Slotted Cylindrical Cam Follower 1-1/2 inch Outside Diameter
Major Brand CNB48 Slotted Cylindrical Cam Follower 1-1/2 inch Outside Diameter
Regular price
CHF 49.00
ex VAT
Regular price
Sale price
CHF 49.00
ex VAT
Equivalent to: CF-1-1/2 S-48 CR-1-1/2 CR-24
In stock
Price Break
3+
CHF 38.81
4+
CHF 36.63
9+
CHF 36.19
19+
CHF 35.76
29+
CHF 35.32
39+
CHF 34.88
49+
CHF 32.70
59+
CHF 32.27
249+
CHF 31.83
499+
CHF 31.40
999+
CHF 30.52
Description
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Equivalent: CF-1-1/2 S-48 CR-1-1/2 CR-24
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Width:
- 22.23mm = 0.875 (7/8) inch
- Pitch:
- UNF 5/8-18
Technical
Technical
| A | 1.5 inch |
|---|---|
| B | 0.875 inch |
| C | 0.625 inch |
| D | 1.5 inch |
| E | 0.75 inch |
| Thread class 2A F | 5/8-18 UNF |
| G | 3/8 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 57/64 inch |
| Recommended bore | 0.625 inch |
| Recommended torque | 650 lbf-in |
| Max static capacity | 5640 lbs |
| Basic dynamic rating | 4840 lbs |
