SKU: CNB-56

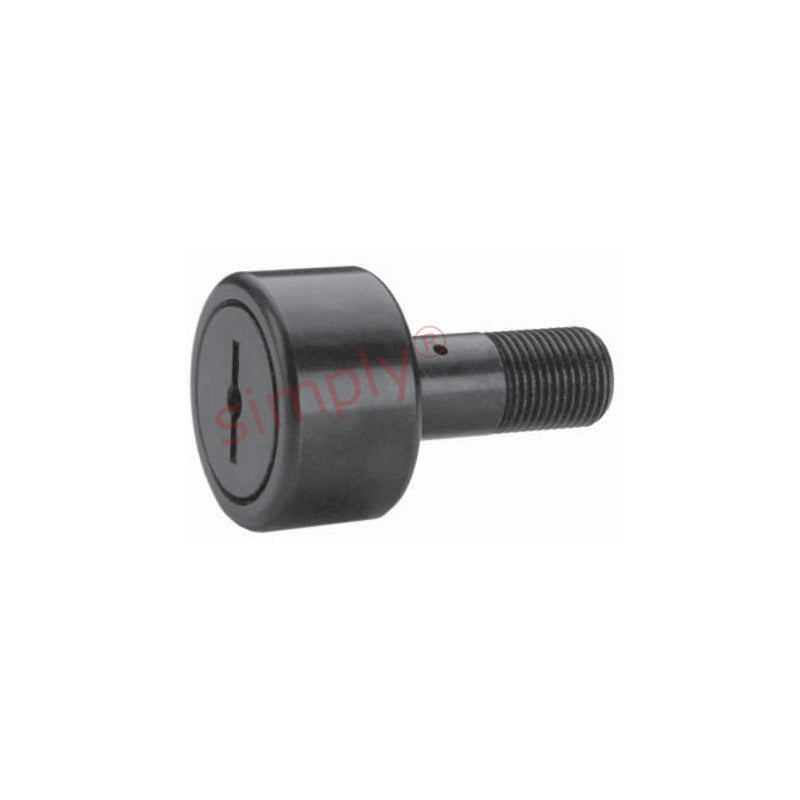

Major Brand CNB56 Slotted Cylindrical Cam Follower 1-3/4 inch Outside Diameter
Major Brand CNB56 Slotted Cylindrical Cam Follower 1-3/4 inch Outside Diameter
Regular price
CHF 41.00
ex VAT
Regular price
Sale price
CHF 41.00
ex VAT
Equivalent to: CF-1-3/4 S-56 CR-1-3/4 CR-28
In stock
Price Break
3+
CHF 32.37
4+
CHF 30.55
9+
CHF 30.19
19+
CHF 29.82
29+
CHF 29.46
39+
CHF 29.10
49+
CHF 27.28
59+
CHF 26.91
249+
CHF 26.55
499+
CHF 26.19
999+
CHF 25.46
Description
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Equivalent: CF-1-3/4 S-56 CR-1-3/4 CR-28
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Width:
- 25.4mm = 1 inch
- Pitch:
- UNF 3/4-16
Technical
Technical
| A | 1.75 inch |
|---|---|
| B | 1 inch |
| C | 0.75 inch |
| D | 1.75 inch |
| E | 0.875 inch |
| Thread class 2A F | 3/4-16 UNF |
| G | 7/16 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 13/64 inch |
| Recommended bore | 0.75 inch |
| Recommended torque | 1250 lbf-in |
| Max static capacity | 7920 lbs |
| Basic dynamic rating | 6385 lbs |
