SKU: CNB-64-SB

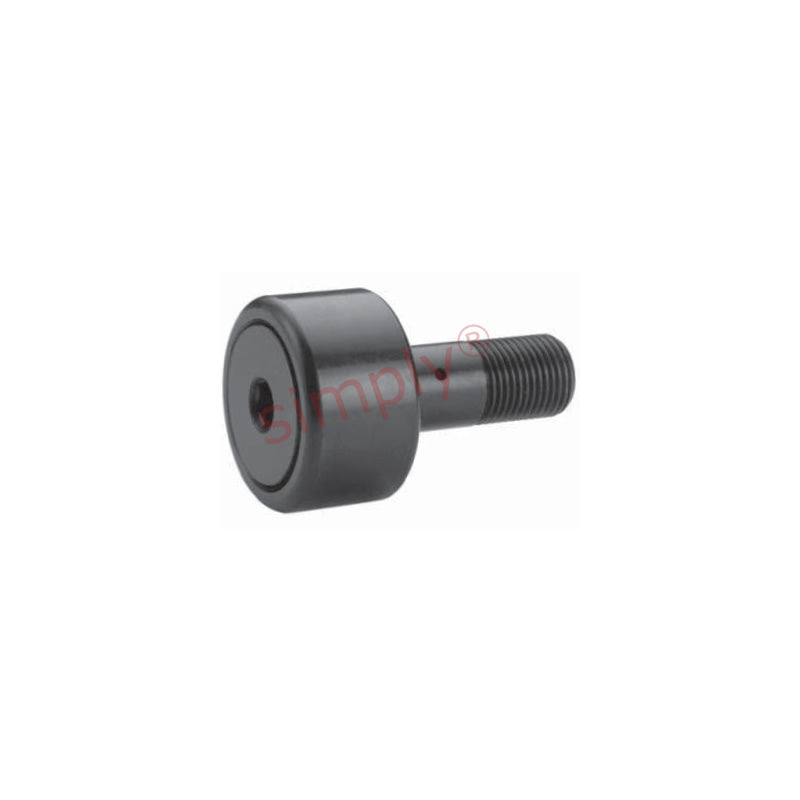

Major Brand CNB64SB Hex Head Sealed Cylindrical Cam Follower 2 inch Outside Diameter
Major Brand CNB64SB Hex Head Sealed Cylindrical Cam Follower 2 inch Outside Diameter
Regular price
CHF 100.00
ex VAT
Regular price
Sale price
CHF 100.00
ex VAT
Equivalent to: CF-2-SB S-64-LW CR-2-XB CRSB-32 CR32VBUU
In stock
Price Break
3+
CHF 79.15
4+
CHF 74.70
9+
CHF 73.81
19+
CHF 72.92
29+
CHF 72.03
39+
CHF 71.15
49+
CHF 66.70
59+
CHF 65.81
249+
CHF 64.92
499+
CHF 64.03
999+
CHF 62.25
Description
Description
|
Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Equivalent: CF-2-SB S-64-LW CR-2-XB CRSB-32 CR32VBUU
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 50.8mm = 2 inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
- Pitch:
- UNF 7/8-14
Technical
Technical
| A | 2 inch |
|---|---|
| B | 1.25 inch |
| C | 0.875 inch |
| D | 2 inch |
| E | 1 inch |
| Thread class 2A F | 7/8-14 UNF |
| G | 1/2 inch |
| H | 1/8 inch |
| J | 3/16 inch |
| Min boss diameter | 1-13/64 inch |
| Recommended bore | 0.875 inch |
| Recommended torque | 1500 lbf-in |
| Max static capacity | 10570 lbs |
| Basic dynamic rating | 8090 lbs |
