SKU: CNBH-16-SB

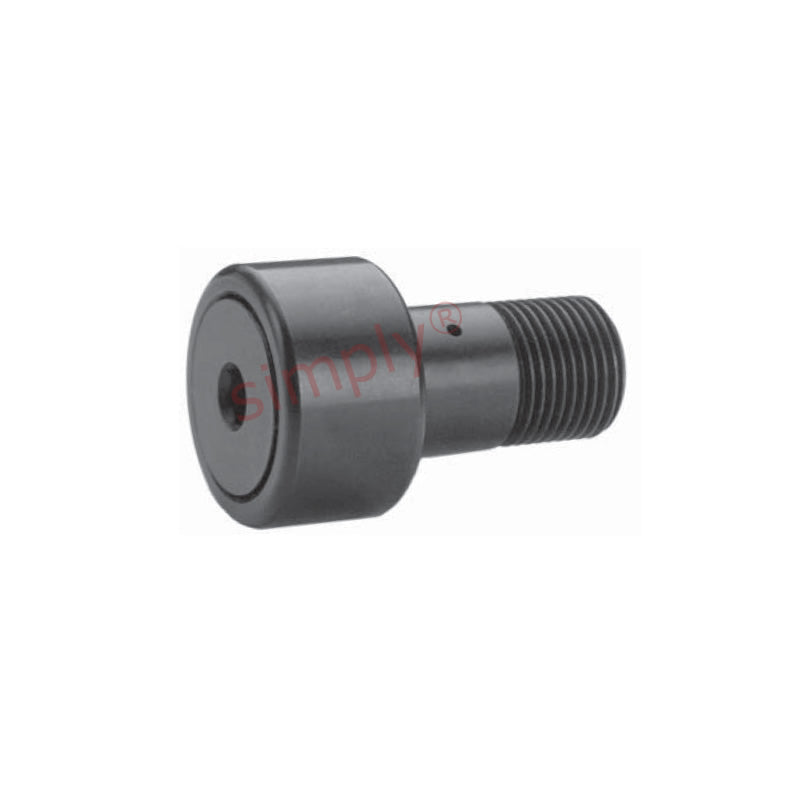

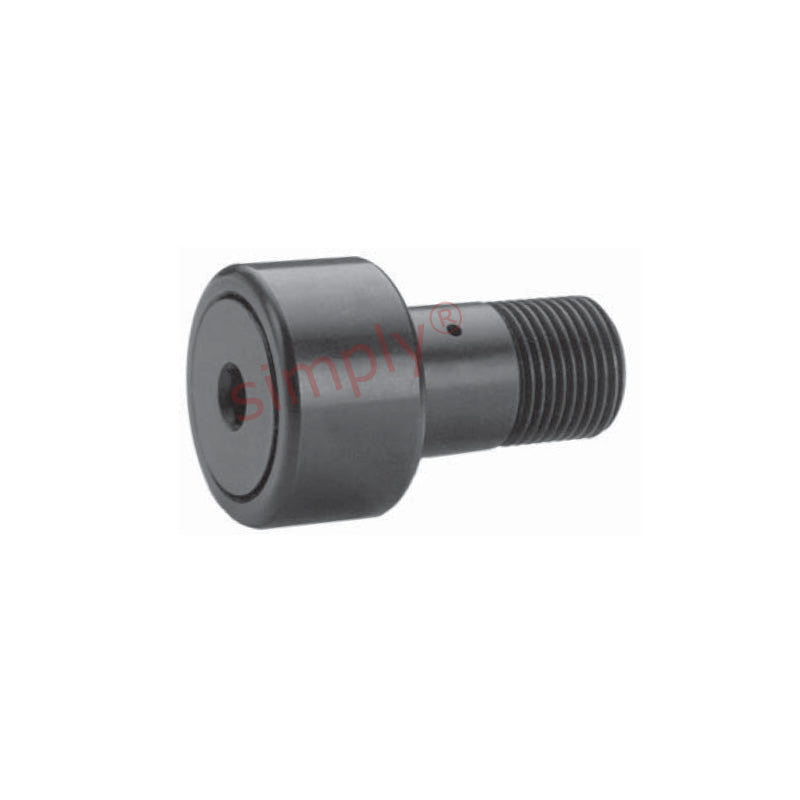

Major Brand CNBH16SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 1/2 inch Outside Diameter
Major Brand CNBH16SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 1/2 inch Outside Diameter
Regular price
CHF 40.00
ex VAT
Regular price
Sale price
CHF 40.00
ex VAT
Equivalent to: CFH-1/2-SB H-16-LW HR-1/2-XB CRHSB-8-1 CRH8-1VBUU
In stock
Price Break
3+
CHF 31.77
4+
CHF 29.99
9+
CHF 29.63
19+
CHF 29.27
29+
CHF 28.92
39+
CHF 28.56
49+
CHF 26.78
59+
CHF 26.42
249+
CHF 26.06
499+
CHF 25.70
999+
CHF 24.99
Description
Description
|
Heavy Duty Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Equivalent: CFH-1/2-SB H-16-LW HR-1/2-XB CRHSB-8-1 CRH8-1VBUU
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Width:
- 9.53mm = 0.375 (3/8) inch
- Pitch:
- UNF 1/4-28
Technical
Technical
| A | 0.5 inch |
|---|---|
| B | 0.375 inch |
| C | 0.25 inch |
| D | 0.625 inch |
| E | 0.25 inch |
| Thread class 2A F | 1/4-28 UNF |
| J | 1/8 inch |
| Min boss diameter | 13/32 inch |
| Recommended bore | 0.25 inch |
| Recommended torque | 35 lbf-in |
| Max static capacity | 1580 lbs |
| Basic dynamic rating | 680 lbs |
