SKU: COM04-EU

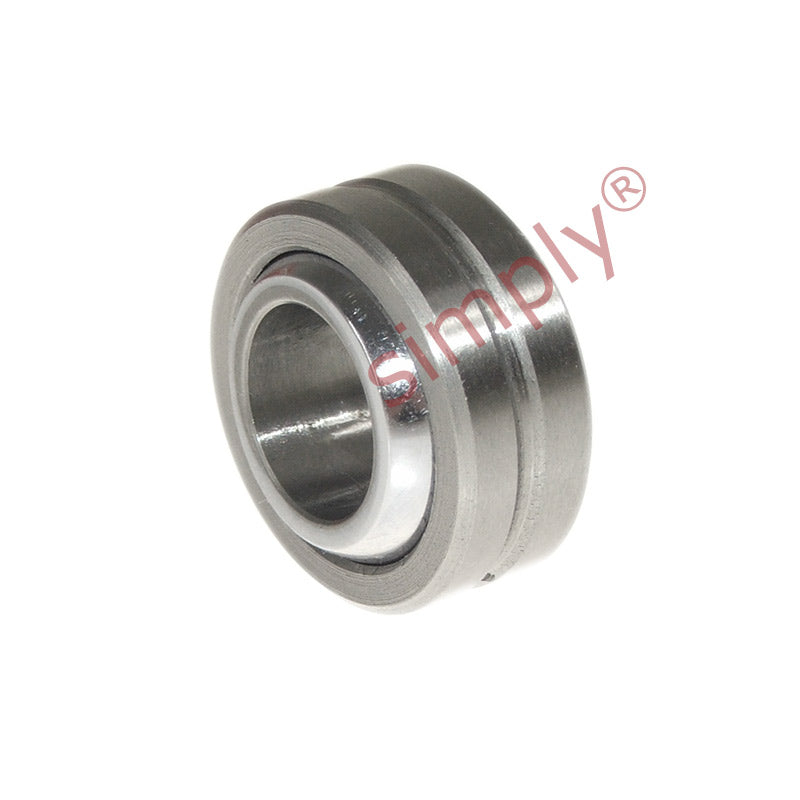

COM04 Imperial Spherical Plain Bearing 1/4 inch Bore

Name: COM04 Imperial Spherical Plain Bearing 1/4 inch Bore
Brand: Simply Spherical Plain
SKU: COM04-EU
Price: 6.00 CHF
Availability: InStock

CHF 6.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 4.32

19+ CHF 4.08

29+ CHF 4.03

39+ CHF 3.98

49+ CHF 3.93

74+ CHF 3.88

99+ CHF 3.64

199+ CHF 3.59

249+ CHF 3.54

499+ CHF 3.50

999+ CHF 3.40

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: COM series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C

Brand / Quality:: Simply Spherical Plain - Economy Quality
Inside Diameter:: 6.35mm = 0.25 (1/4) inch
Outside Diameter:: 16.67mm = 0.656 (21/32) inch
Width:: 6.35mm = 0.25 (1/4) inch

Technical

b	1/4 inch
w	11/32 inch
h	1/4 inch
D	21/32 inch
O	0.364 inch
Static load	22015 N
