SKU: COM04T-EU

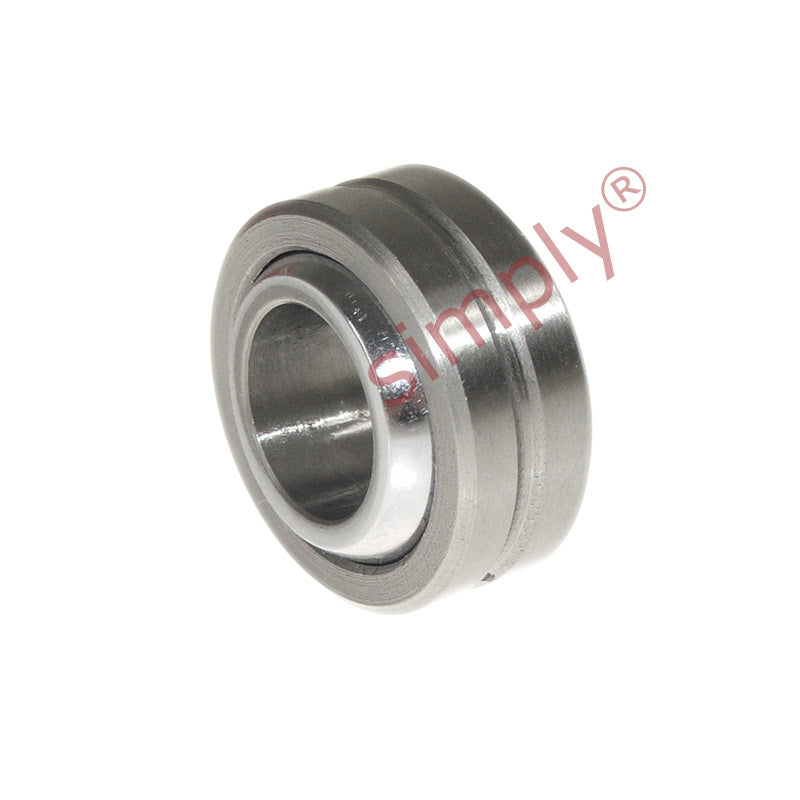

COM04T PTFE Lined Imperial Spherical Plain Bearing 1/4 inch Bore

Name: COM04T PTFE Lined Imperial Spherical Plain Bearing 1/4 inch Bore
Brand: Simply Spherical Plain
SKU: COM04T-EU
Price: 7.00 CHF
Availability: InStock

CHF 7.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 5.33

19+ CHF 5.03

29+ CHF 4.97

39+ CHF 4.91

49+ CHF 4.85

74+ CHF 4.79

99+ CHF 4.49

199+ CHF 4.43

249+ CHF 4.37

499+ CHF 4.31

999+ CHF 4.19

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C

Brand / Quality:: Simply Spherical Plain - Economy Quality
Inside Diameter:: 6.35mm = 0.25 (1/4) inch
Outside Diameter:: 16.67mm = 0.656 (21/32) inch
Width:: 6.35mm = 0.25 (1/4) inch

Technical

b	1/4 inch
w	11/32 inch
h	1/4 inch
D	21/32 inch
O	0.364 inch
Static load	22015 N
