SKU: COM05-EU

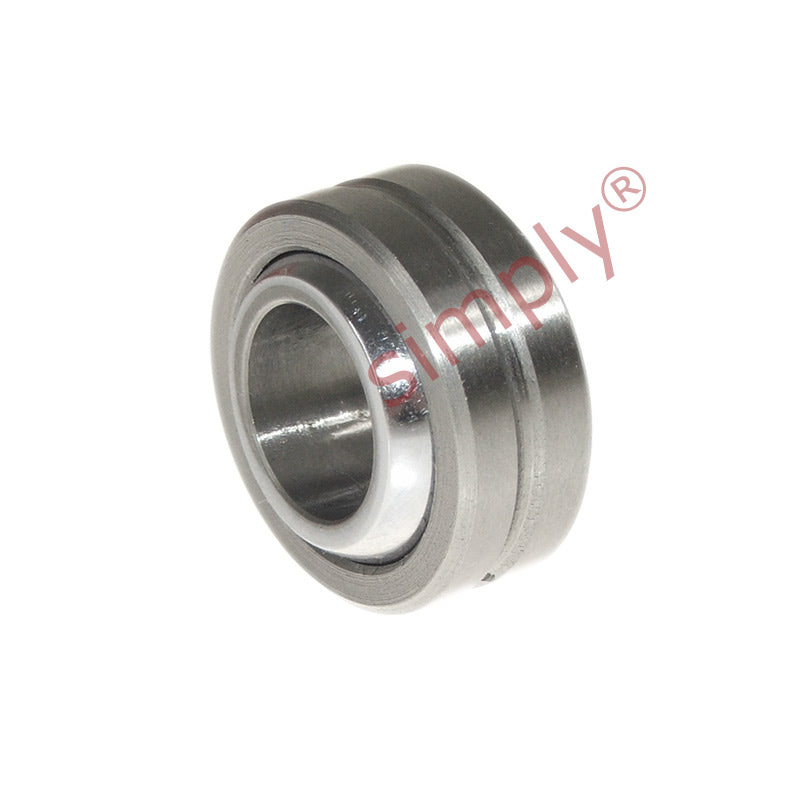

COM05 Imperial Spherical Plain Bearing 5/16 inch Bore

Name: COM05 Imperial Spherical Plain Bearing 5/16 inch Bore
Brand: Simply Spherical Plain
SKU: COM05-EU
Price: 7.00 CHF
Availability: InStock

CHF 7.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 4.90

19+ CHF 4.63

29+ CHF 4.57

39+ CHF 4.52

49+ CHF 4.46

74+ CHF 4.41

99+ CHF 4.13

199+ CHF 4.08

249+ CHF 4.02

499+ CHF 3.97

999+ CHF 3.86

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: COM series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C

Brand / Quality:: Simply Spherical Plain - Economy Quality
Inside Diameter:: 7.93mm = 0.312 (5/16) inch
Outside Diameter:: 19.05mm = 0.75 (3/4) inch
Width:: 7.14mm = 0.281 (9/32) inch

Technical

b	5/16 inch
w	3/8 inch
h	9/32 inch
D	3/4 inch
O	0.419 inch
Static load	28800 N
