SKU: COM05T-EU

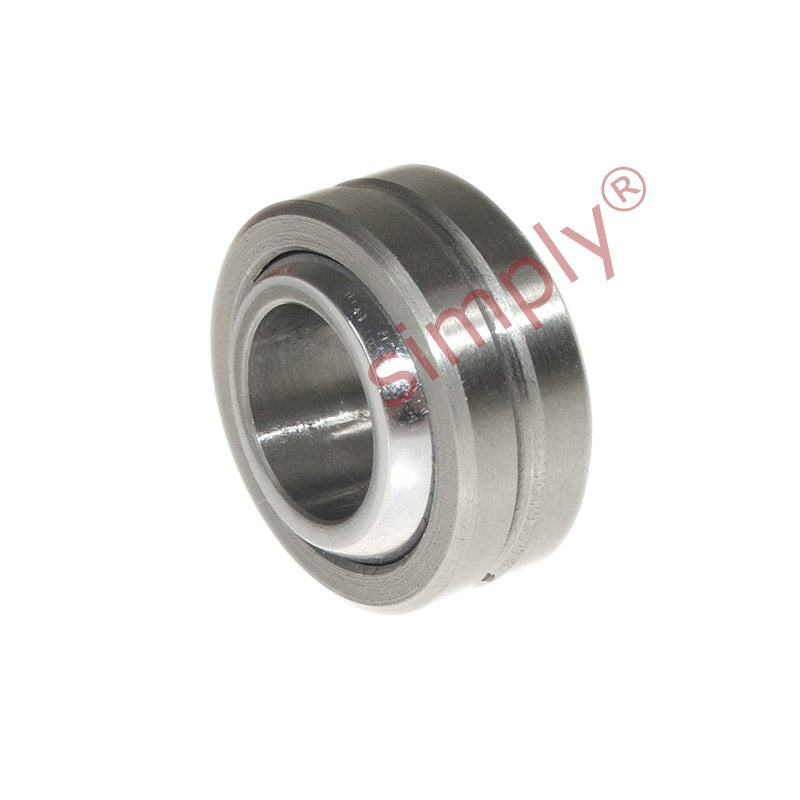

COM05T PTFE Lined Imperial Spherical Plain Bearing 5/16 inch Bore

Name: COM05T PTFE Lined Imperial Spherical Plain Bearing 5/16 inch Bore
Brand: Simply Spherical Plain
SKU: COM05T-EU
Price: 8.00 CHF
Availability: InStock

CHF 8.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 5.63

19+ CHF 5.31

29+ CHF 5.25

39+ CHF 5.19

49+ CHF 5.12

74+ CHF 5.06

99+ CHF 4.74

199+ CHF 4.68

249+ CHF 4.62

499+ CHF 4.55

999+ CHF 4.43

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C

Brand / Quality:: Simply Spherical Plain - Economy Quality
Inside Diameter:: 7.93mm = 0.312 (5/16) inch
Outside Diameter:: 19.05mm = 0.75 (3/4) inch
Width:: 7.14mm = 0.281 (9/32) inch

Technical

b	5/16 inch
w	3/8 inch
h	9/32 inch
D	3/4 inch
O	0.419 inch
Static load	28800 N
