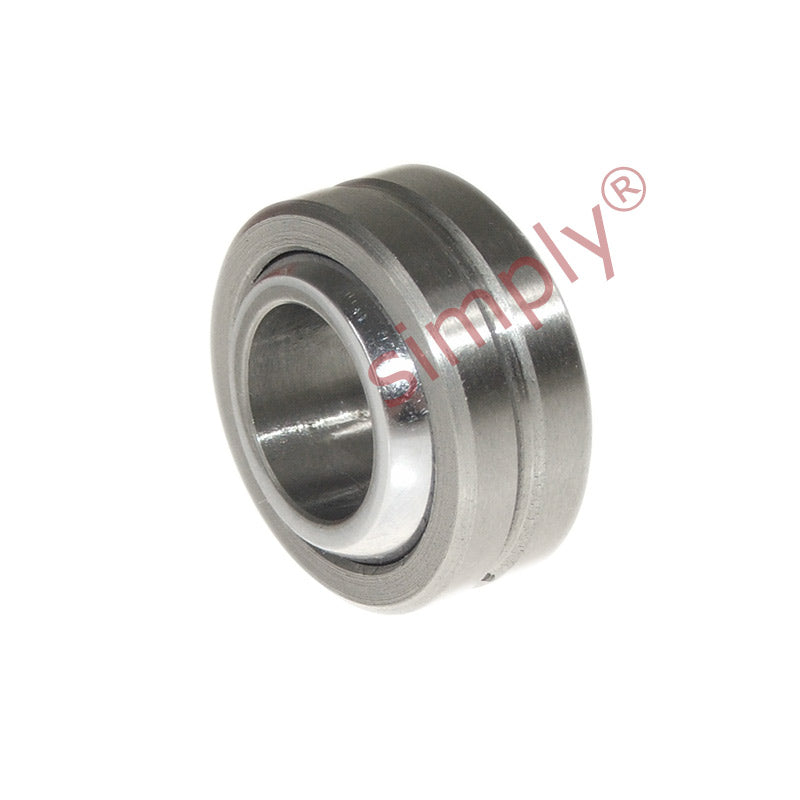

COM06T PTFE Lined Imperial Spherical Plain Bearing 3/8 inch Bore

Name: COM06T PTFE Lined Imperial Spherical Plain Bearing 3/8 inch Bore
Brand: Simply Spherical Plain
SKU: COM06T-EU
Price: 8.00 CHF
Availability: InStock

CHF 8.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 6.14

19+ CHF 5.79

29+ CHF 5.72

39+ CHF 5.65

49+ CHF 5.59

74+ CHF 5.52

99+ CHF 5.17

199+ CHF 5.10

249+ CHF 5.03

499+ CHF 4.96

999+ CHF 4.83

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C

Brand / Quality:: Simply Spherical Plain - Economy Quality
Inside Diameter:: 9.53mm = 0.375 (3/8) inch
Outside Diameter:: 21.03mm = 0.828 (53/64) inch
Width:: 7.93mm = 0.312 (5/16) inch

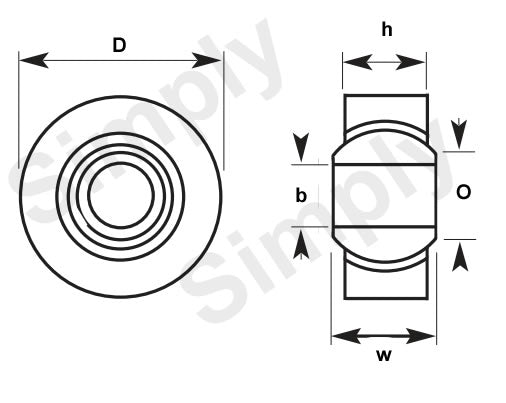

Technical

b	3/8 inch
w	13/32 inch
h	5/16 inch
D	53/64 inch
O	0.516 inch
Static load	37361 N
