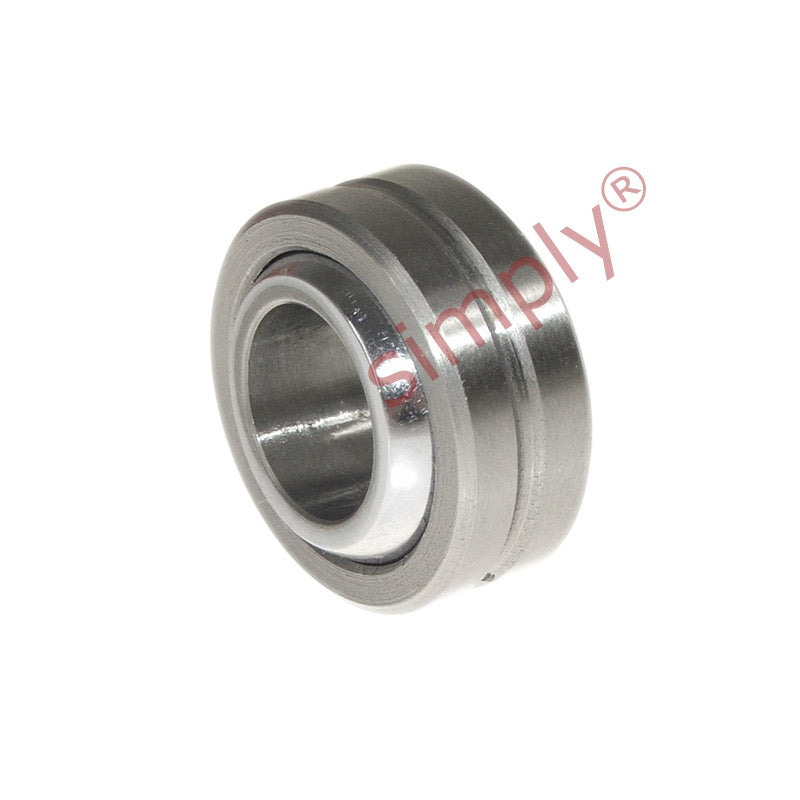

COM08T PTFE Lined Imperial Spherical Plain Bearing 1/2 inch Bore

Name: COM08T PTFE Lined Imperial Spherical Plain Bearing 1/2 inch Bore
Brand: Simply Spherical Plain
SKU: COM08T-EU
Price: 9.00 CHF
Availability: InStock

CHF 9.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 6.90

19+ CHF 6.51

29+ CHF 6.43

39+ CHF 6.36

49+ CHF 6.28

74+ CHF 6.20

99+ CHF 5.81

199+ CHF 5.74

249+ CHF 5.66

499+ CHF 5.58

999+ CHF 5.43

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C

Brand / Quality:: Simply Spherical Plain - Economy Quality
Inside Diameter:: 12.7mm = 0.5 (1/2) inch
Outside Diameter:: 25.4mm = 1 inch
Width:: 9.92mm = 0.391 (25/64) inch

Technical

b	1/2 inch
w	1/2 inch
h	25/64 inch
D	1 inch
O	0.64 inch
Static load	58934 N
