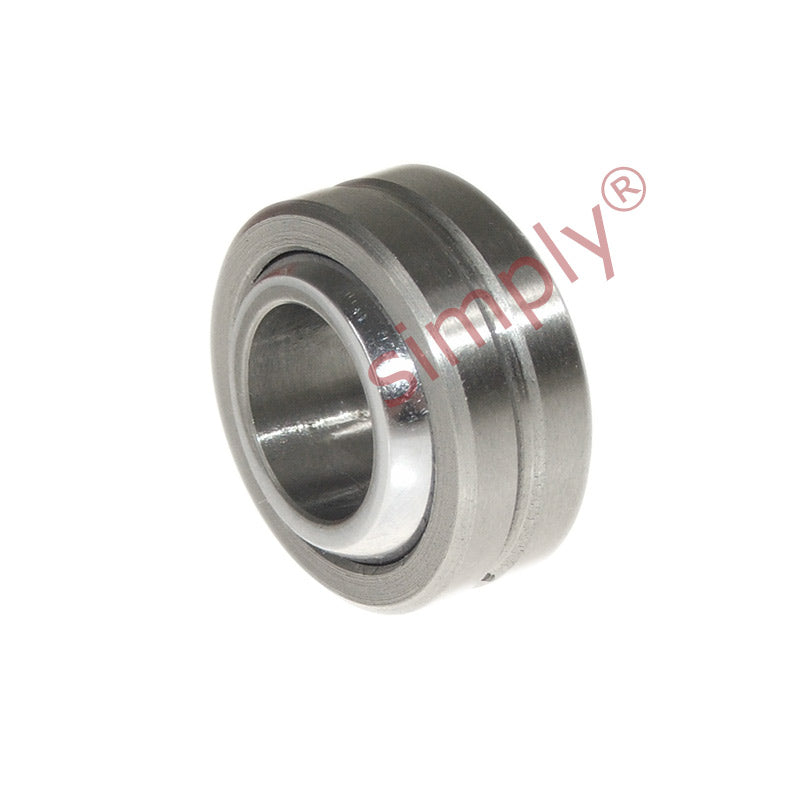

COM12T PTFE Lined Imperial Spherical Plain Bearing 3/4 inch Bore

Name: COM12T PTFE Lined Imperial Spherical Plain Bearing 3/4 inch Bore
Brand: Simply Spherical Plain
SKU: COM12T-EU
Price: 13.00 CHF
Availability: InStock

CHF 13.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 9.59

19+ CHF 9.05

29+ CHF 8.94

39+ CHF 8.83

49+ CHF 8.72

74+ CHF 8.62

99+ CHF 8.08

199+ CHF 7.97

249+ CHF 7.86

499+ CHF 7.76

999+ CHF 7.54

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C

Brand / Quality:: Simply Spherical Plain - Economy Quality
Inside Diameter:: 19.05mm = 0.75 (3/4) inch
Outside Diameter:: 36.51mm = 1.437 (1-7/16) inch
Width:: 15.08mm = 0.594 (19/32) inch

Technical

b	3/4 inch
w	3/4 inch
h	19/32 inch
D	1-7/16 inch
O	0.92 inch
Static load	141982 N
