SKU: COM16T-EU

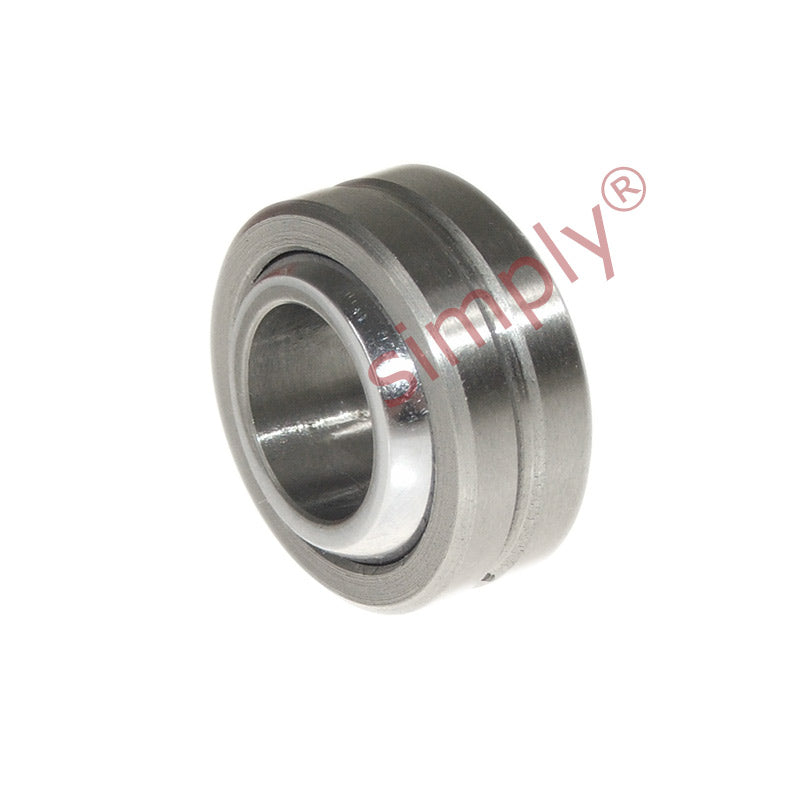

COM16T PTFE Lined Imperial Spherical Plain Bearing 1 inch Bore

Name: COM16T PTFE Lined Imperial Spherical Plain Bearing 1 inch Bore
Brand: Simply Spherical Plain
SKU: COM16T-EU
Price: 27.00 CHF
Availability: InStock

CHF 27.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 21.37

19+ CHF 20.17

29+ CHF 19.93

39+ CHF 19.69

49+ CHF 19.45

74+ CHF 19.21

99+ CHF 18.01

199+ CHF 17.77

249+ CHF 17.53

499+ CHF 17.29

999+ CHF 16.81

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C

Brand / Quality:: Simply Spherical Plain - Economy Quality
Inside Diameter:: 25.4mm = 1 inch
Outside Diameter:: 44.45mm = 1.75 (1-3/4) inch
Width:: 20.24mm = 0.797 (51/64) inch

Technical

b	1 inch
w	1 inch
h	51/64 inch
D	1-3/4 inch
O	1.118 inch
Static load	245534 N
