SKU: CRB20/83-INA

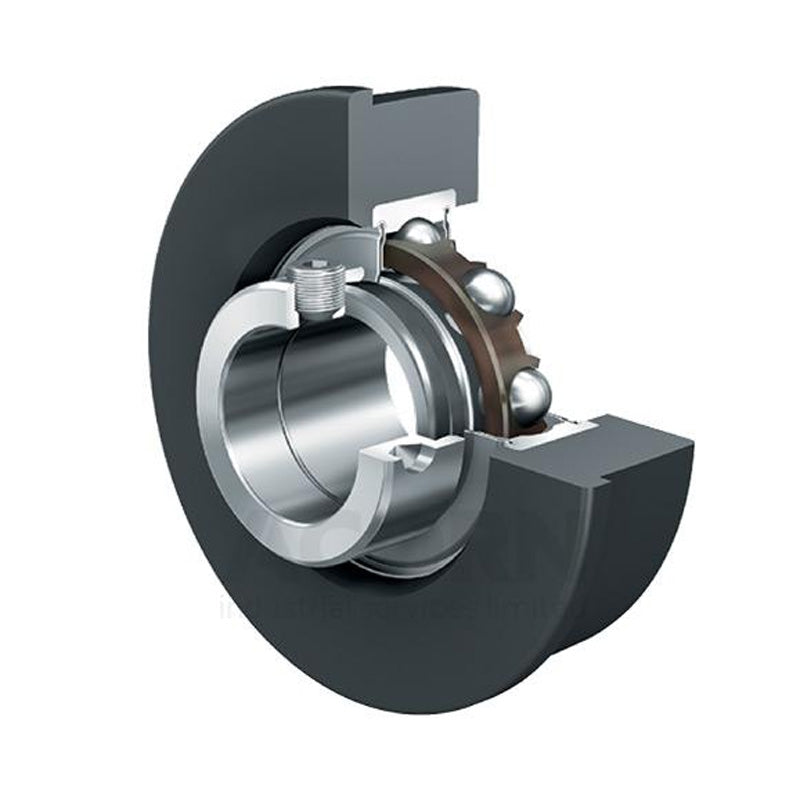

INA CRB20/83XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x83.6x36.2mm
INA CRB20/83XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x83.6x36.2mm
Regular price
CHF 39.75
ex VAT
Regular price
Sale price
CHF 39.75
ex VAT
In stock
Price Break
10+
CHF 35.38
19+
CHF 33.39
29+
CHF 32.99
39+
CHF 32.60
49+
CHF 32.20
74+
CHF 31.80
99+
CHF 29.81
199+
CHF 29.42
249+
CHF 29.02
499+
CHF 28.62
999+
CHF 27.83
Couldn't load pickup availability
Description
Description
|
INA CRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 83.6mm
- Width:
- 36.2mm
- Type:
- Parallel Outer
Technical
Technical
| d | 20mm |
|---|---|
| D | 83.6mm |
| B2 | 36.2mm |
| B1 | 31mm |
| C | 25.4mm |
| C1 | 4.8mm |
| D1 | 87.4mm |
| D2 | 40mm |
| d3 max | 33mm |
| S2 | 12.7mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 80 deg |
| Rubber ring: load carrying capacity Cg | 750 N |
| Dynamic load Cr | 12800 N |
| Static load C0r | 6600 N |
| Designation of rubber interliner | CR47/83 |
| Designation of bearing | RAE20-NPP |
| Weight | 0.3 kg |
