SKU: CRB25/70-INA

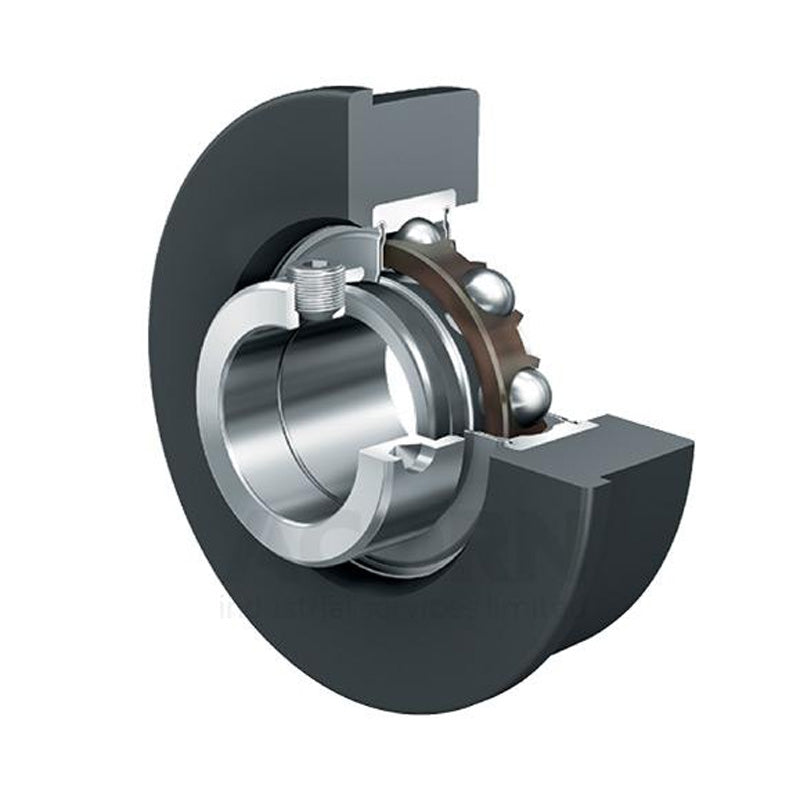

INA CRB25/70XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 25x71.5x36mm
INA CRB25/70XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 25x71.5x36mm
Regular price
CHF 40.19
ex VAT
Regular price
Sale price
CHF 40.19
ex VAT
In stock
Price Break
10+
CHF 35.77
19+
CHF 33.76
29+
CHF 33.36
39+
CHF 32.96
49+
CHF 32.55
74+
CHF 32.15
99+
CHF 30.14
199+
CHF 29.74
249+
CHF 29.34
499+
CHF 28.94
999+
CHF 28.13
Couldn't load pickup availability
Description
Description
|
INA CRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 71.5mm
- Width:
- 36mm
- Type:
- Parallel Outer
Technical
Technical
| d | 25mm |
|---|---|
| D | 71.5mm |
| B2 | 36mm |
| B1 | 31mm |
| C | 25mm |
| C1 | 5mm |
| D1 | 76mm |
| D2 | 46mm |
| d3 max | 37.5mm |
| S2 | 12.5mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 80 deg |
| Rubber ring: load carrying capacity Cg | 1000 N |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Designation of rubber interliner | CR52/70 |
| Designation of bearing | RAE25-NPP |
| Weight | 0.32 kg |
