SKU: CRB35/110-INA

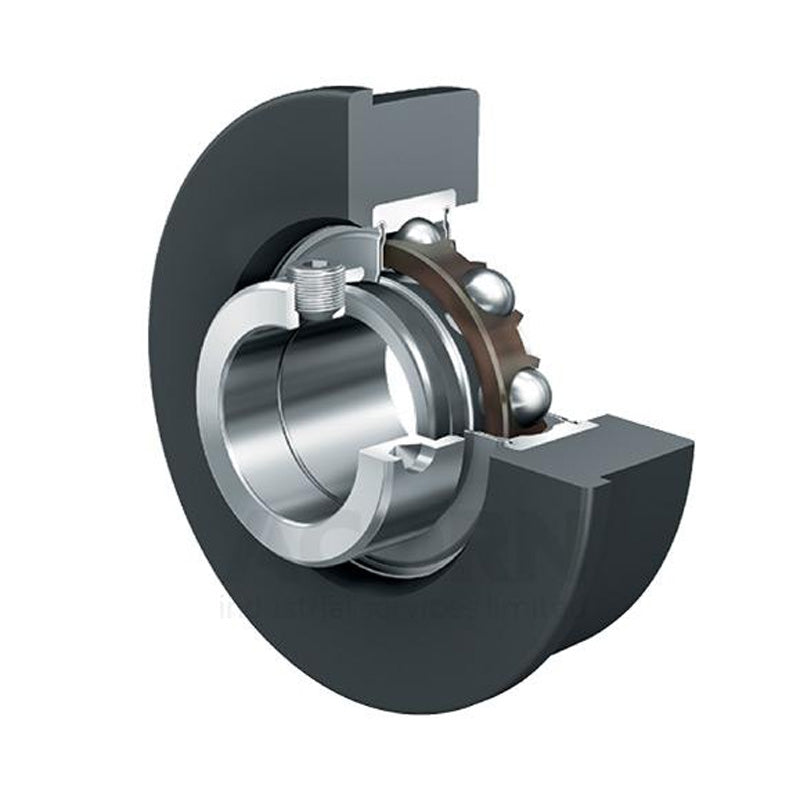

INA CRB35/110XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 35x112.3x44.4mm
INA CRB35/110XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 35x112.3x44.4mm
Regular price
CHF 62.66
ex VAT
Regular price
Sale price
CHF 62.66
ex VAT
In stock
Price Break
10+
CHF 55.77
19+
CHF 52.63
29+
CHF 52.01
39+
CHF 51.38
49+
CHF 50.75
74+
CHF 50.13
99+
CHF 47.00
199+
CHF 46.37
249+
CHF 45.74
499+
CHF 45.12
999+
CHF 43.86
Couldn't load pickup availability
Description
Description
|
INA CRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 112.3mm
- Width:
- 44.4mm
- Type:
- Parallel Outer
Technical
Technical
| d | 35mm |
|---|---|
| D | 112.3mm |
| B2 | 44.4mm |
| B1 | 39mm |
| C | 30mm |
| C1 | 5mm |
| D1 | 120mm |
| D2 | 64mm |
| d3 max | 51mm |
| S2 | 15mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 80 deg |
| Rubber ring: load carrying capacity Cg | 1500 N |
| Dynamic load Cr | 25500 N |
| Static load C0r | 15300 N |
| Designation of rubber interliner | CR72/110 |
| Designation of bearing | RAE35-NPP |
| Weight | 0.56 kg |
