SKU: CRP.HCK.7/16X1.1/4IN

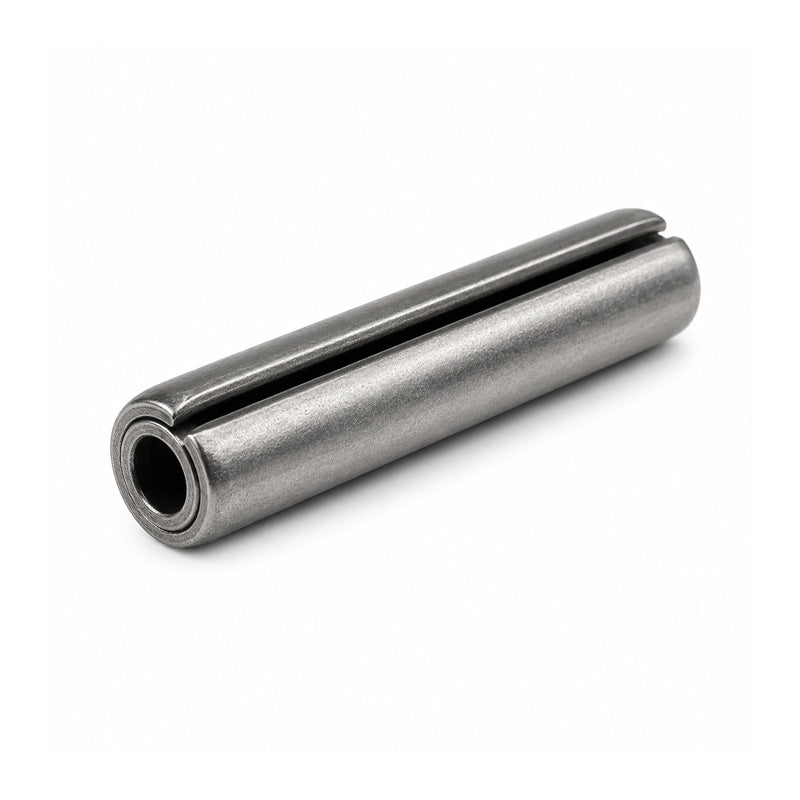

Imperial Chrome Stainless Steel AISI 420 HCK Coiled Roll Pin 7/16x1-1/4 inch with Plain Oiled Finish - Allow 2-3 Days
Imperial Chrome Stainless Steel AISI 420 HCK Coiled Roll Pin 7/16x1-1/4 inch with Plain Oiled Finish - Allow 2-3 Days
Regular price
CHF 6.00
ex VAT
Regular price
Sale price
CHF 6.00
ex VAT
In stock
Share this product
Description
Description
Coiled Chrome Stainless Steel Roll Pins with Plain Oiled Finish: These roll pins are manufactured from martensitic chrome stainless steel (DIN 7343 / AISI 420). Chrome stainless steel provides good corrosion resistance, excellent strength, and fatigue properties. The recommended service temperatures for chrome stainless steel pins is between -45 Deg C and 260 Deg C.
These pins are completed with a dry-to-the-touch plain oiled finish. The oil finish provides corrosion resistance, protecting the pins during storage and shipping.
Benefits: Excellent strength, good fatigue properties, wide temperature range
- Brand / Quality:
- Simply Coiled Roll Pins - High Quality
- Outside Diameter:
- 11.11mm = 0.437 (7/16) inch
- Length:
- 31.75mm = 1.25 (1-1/4) inch
- Material:
- Chrome Stainless Steel
- Grade:
- AISI 420
Technical
Technical
| Outside Diameter d1 | 7/16 inch |
|---|---|
| Length L | 1-1/4 inch |
| Length Tolerance | +/- 0.25 inch |
| Chamfer Diameter B | 0.427 inch (Approx) |
| Chamfer Length C | 0.103 inch (Approx) |
| Material | Chrome Stainless Steel |
| Material Grade | AISI 420 |
| DIN / ISO | DIN7343 / ISO8750 |
| Finish | Plain Oiled Finish |
| Weight per pin | 0.0242kg |
