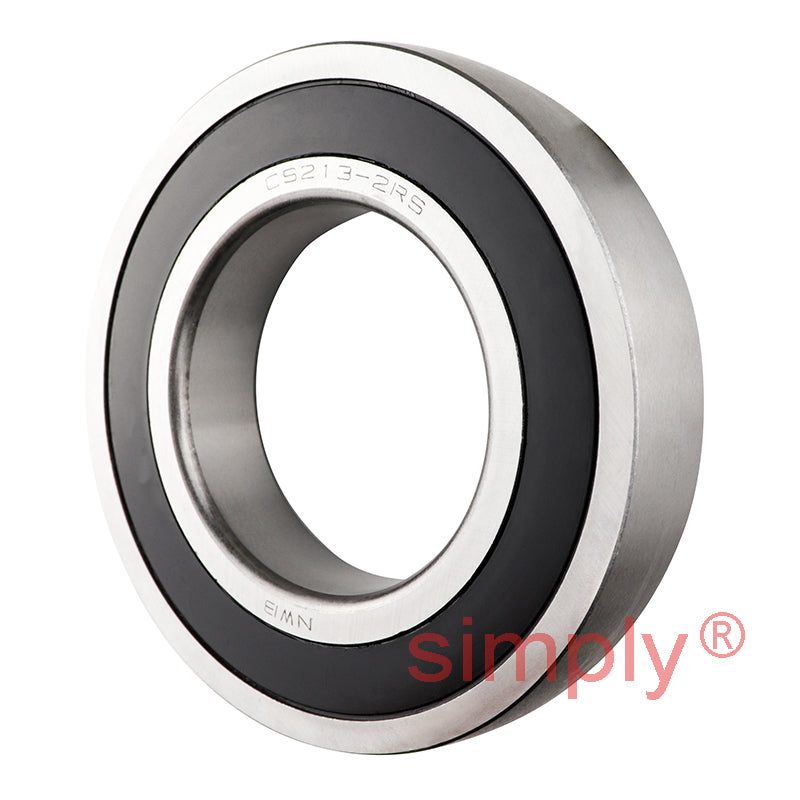

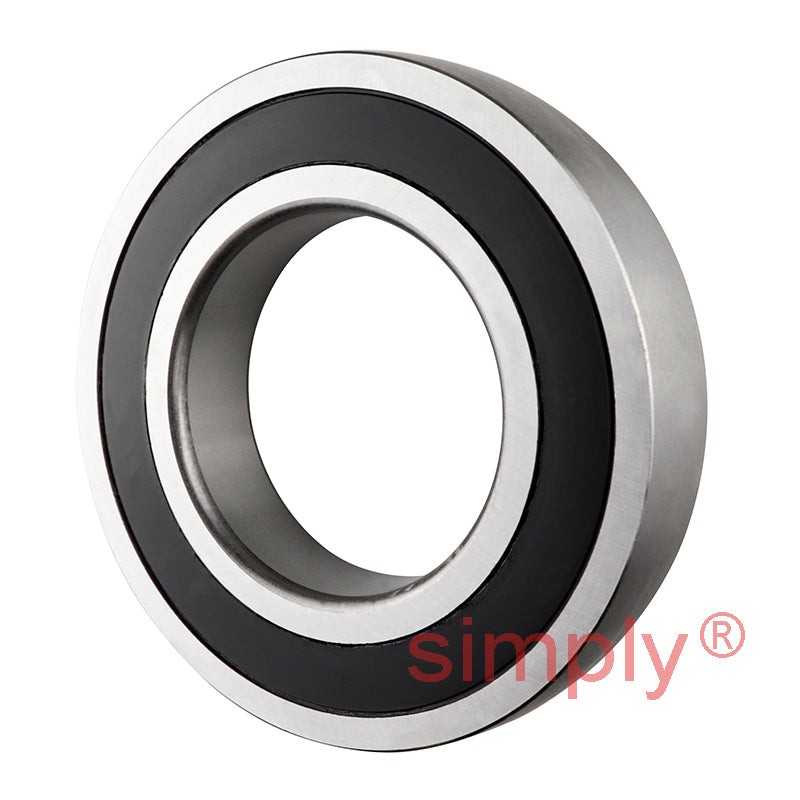

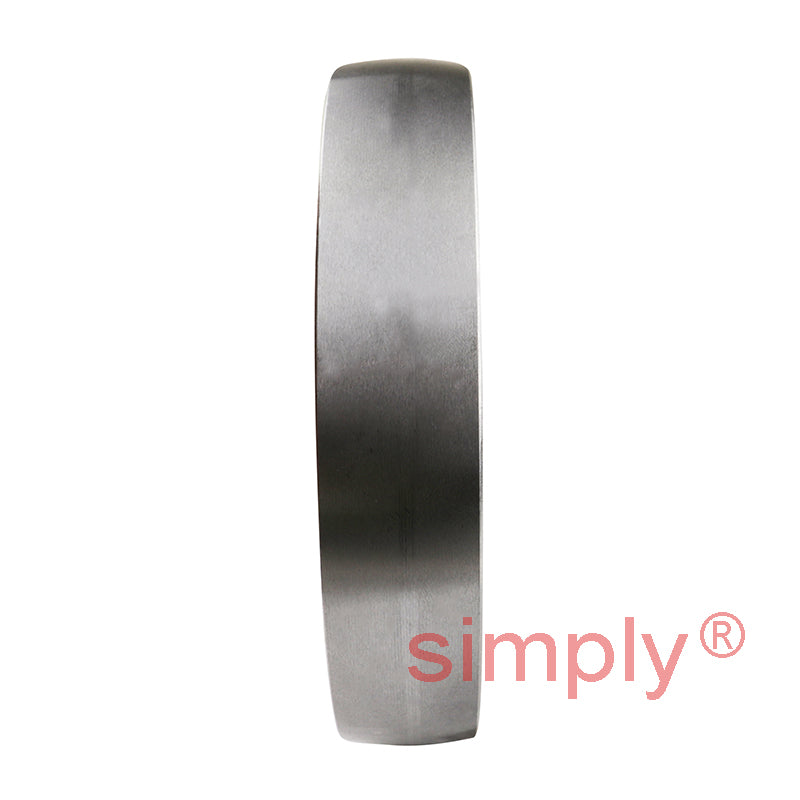

NWB CS213 Spherical Outside Diameter Rubber Sealed Deep Groove Ball Bearing 65x120x23mm

CS Type Spherical Outer Bearing: The only difference between these bearings and deep groove ball bearings in the 62 and 63 series is the sphered outside surface of the outer ring. These spherical outer bearings are suitable for applications where the direction of the load alternates and where smooth running is a key operational parameter. These bearings can accommodate heavier axial loads than housed inserts of any other design. They can also operate at the same speeds as the corresponding sealed deep groove ball bearings. Insert bearings are based on sealed deep groove ball bearings in the 62 and 63 series, but have a convex outer ring and in most cases an extended inner ring with a specific locking device, enabling quick and easy mounting onto the shaft.

Brand / Quality:

NWB - High Quality

Inside Diameter:

65mm

Outside Diameter:

120mm

Width:

23mm

Seals / Shields:

Rubber Sealed

Clearance:

* Standard
