SKU: CSA.202

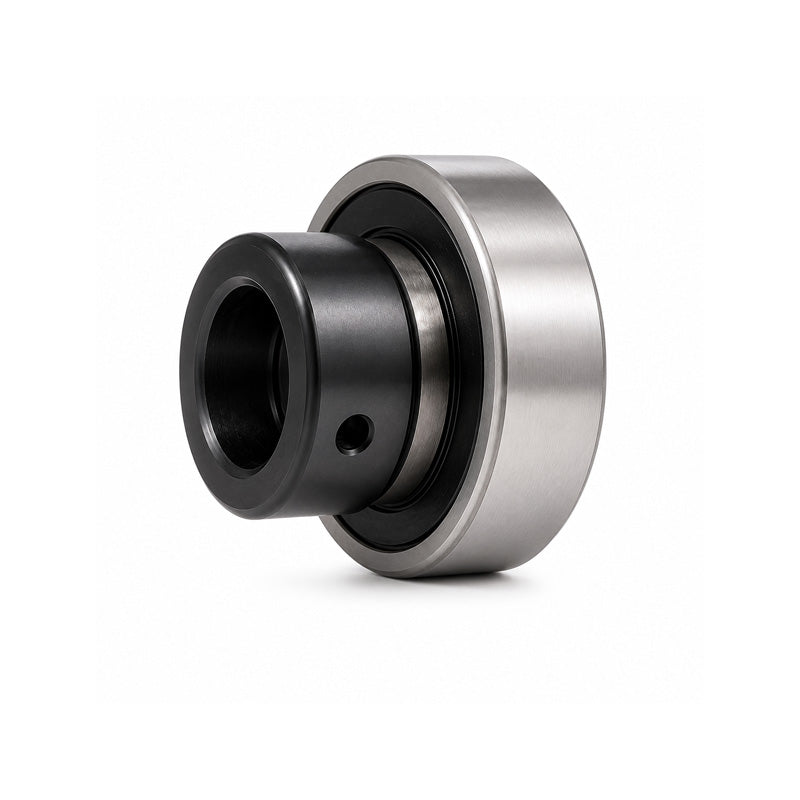

CSA202 Metric Bearing Insert with Locking Collar 15mm Bore 40mm Outside Dia
CSA202 Metric Bearing Insert with Locking Collar 15mm Bore 40mm Outside Dia
Regular price
CHF 8.48
ex VAT
Regular price
Sale price
CHF 8.48
ex VAT
In stock
Price Break
10+
CHF 7.55
19+
CHF 7.12
29+
CHF 7.04
39+
CHF 6.95
49+
CHF 6.87
74+
CHF 6.78
99+
CHF 6.36
199+
CHF 6.28
249+
CHF 6.19
499+
CHF 6.11
999+
CHF 5.94
Couldn't load pickup availability
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 40mm
- Style:
- CSA
- Type:
- Parallel Outer
Technical
Technical
| d | 15mm |
|---|---|
| Be | 12mm |
| D | 40mm |
| z | 19.1mm |
| n | 6mm |
| m | 13.1mm |
| Bi | 28.6mm |
| k | 28.6mm |
| H | 13.5mm |
| G | 5mm |
| h | 3.6mm |
| Grub screw | M6X1.0 |
| Weight | 0.13 kg |
| Dynamic load | 960 kgf |
| Static load | 480 kgf |
