SKU: CSA.205

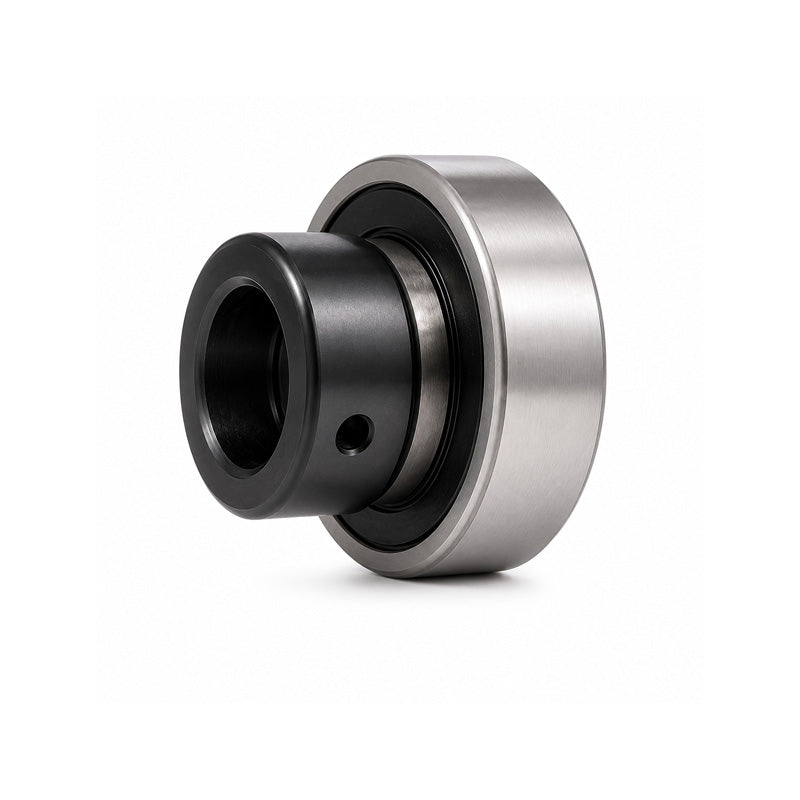

CSA205 Metric Bearing Insert with Locking Collar 25mm Bore 52mm Outside Dia
CSA205 Metric Bearing Insert with Locking Collar 25mm Bore 52mm Outside Dia
Regular price
CHF 12.00
ex VAT
Regular price
Sale price
CHF 12.00
ex VAT
In stock
Price Break
3+
CHF 9.21
4+
CHF 8.70
9+
CHF 8.59
19+
CHF 8.49
49+
CHF 8.39
99+
CHF 8.28
499+
CHF 7.76
999+
CHF 7.66
1999+
CHF 7.56
2999+
CHF 7.45
4999+
CHF 7.25
Share this product
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Style:
- CSA
Technical
Technical
| d | 25mm |
|---|---|
| Be | 15mm |
| D | 52mm |
| z | 21.5mm |
| n | 7.5mm |
| m | 14mm |
| Bi | 31mm |
| k | 38.1mm |
| H | 13.5mm |
| G | 5mm |
| h | 3.9mm |
| Grub screw | M6X1.0 |
| Weight | 0.22 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
