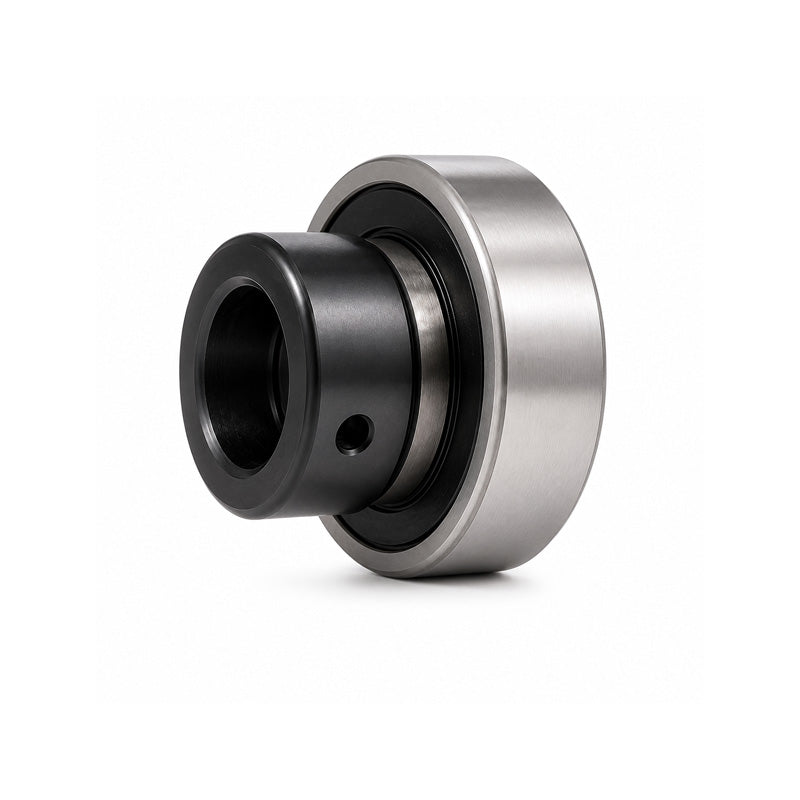

CSA207 Metric Bearing Insert with Locking Collar 35mm Bore 72mm Outside Dia
CSA207 Metric Bearing Insert with Locking Collar 35mm Bore 72mm Outside Dia
Regular price
CHF 17.90
ex VAT
Regular price
Sale price
CHF 17.90
ex VAT
In stock
Price Break
10+
CHF 15.93
19+
CHF 15.04
29+
CHF 14.86
39+
CHF 14.68
49+
CHF 14.50
74+
CHF 14.32
99+
CHF 13.43
199+
CHF 13.25
249+
CHF 13.07
499+
CHF 12.89
999+
CHF 12.53
Couldn't load pickup availability
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- CSA
- Type:
- Parallel Outer
Technical
Technical
| d | 35mm |
|---|---|
| Be | 17mm |
| D | 72mm |
| z | 25.4mm |
| n | 8.5mm |
| m | 16.9mm |
| Bi | 38.9mm |
| k | 55.6mm |
| H | 17.5mm |
| G | 6.5mm |
| h | 5.5mm |
| Grub screw | M8X1.0 |
| Weight | 0.5 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
