SKU: CSA.208

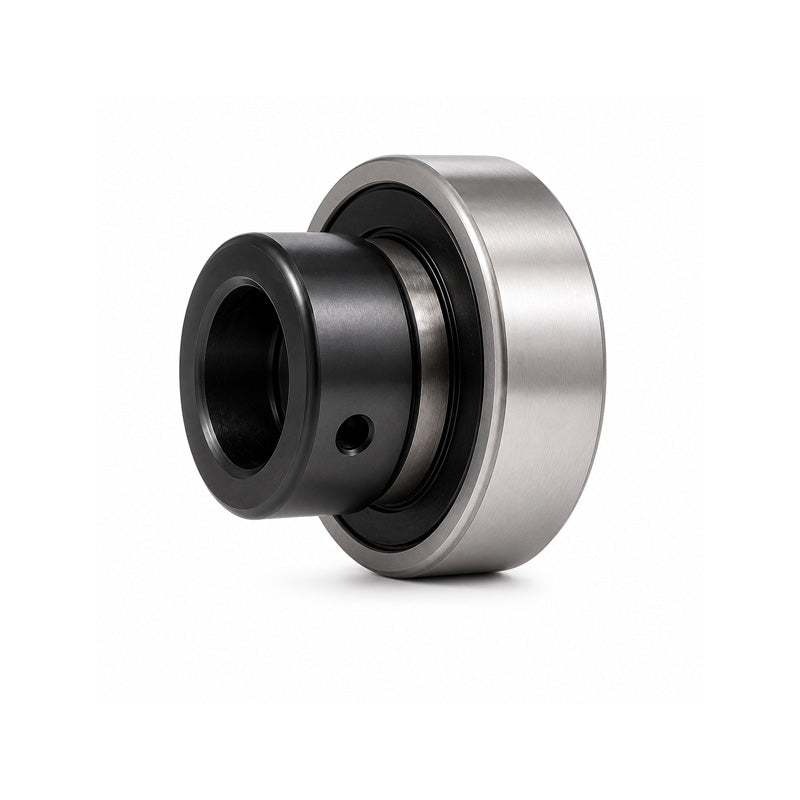

CSA208 Metric Bearing Insert with Locking Collar 40mm Bore 80mm Outside Dia
CSA208 Metric Bearing Insert with Locking Collar 40mm Bore 80mm Outside Dia
Regular price
CHF 22.13
ex VAT
Regular price
Sale price
CHF 22.13
ex VAT
In stock
Price Break
10+
CHF 19.70
19+
CHF 18.59
29+
CHF 18.37
39+
CHF 18.15
49+
CHF 17.93
74+
CHF 17.70
99+
CHF 16.60
199+
CHF 16.38
249+
CHF 16.15
499+
CHF 15.93
999+
CHF 15.49
Couldn't load pickup availability
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Style:
- CSA
- Type:
- Parallel Outer
Technical
Technical
| d | 40mm |
|---|---|
| Be | 18mm |
| D | 80mm |
| z | 30.2mm |
| n | 9mm |
| m | 21.2mm |
| Bi | 43.7mm |
| k | 60.3mm |
| H | 18.3mm |
| G | 6.5mm |
| h | 6mm |
| Grub screw | M8X1.0 |
| Weight | 0.67 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
