SKU: CSA.208-24

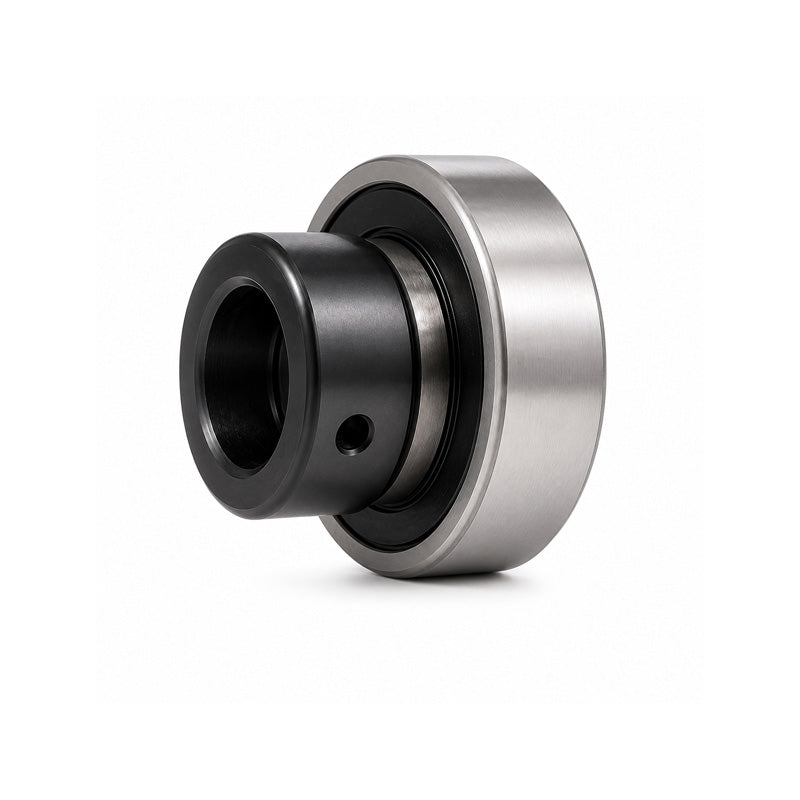

CSA208-24 Imperial Bearing Insert with Locking Collar 1-1/2 inch Bore 80mm Outside Dia
CSA208-24 Imperial Bearing Insert with Locking Collar 1-1/2 inch Bore 80mm Outside Dia
Regular price
CHF 22.13
ex VAT
Regular price
Sale price
CHF 22.13
ex VAT
In stock
Price Break
10+
CHF 19.70
19+
CHF 18.59
29+
CHF 18.37
39+
CHF 18.15
49+
CHF 17.93
74+
CHF 17.70
99+
CHF 16.60
199+
CHF 16.38
249+
CHF 16.15
499+
CHF 15.93
999+
CHF 15.49
Couldn't load pickup availability
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
- Style:
- CSA
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| Be | 18mm |
| D | 80mm |
| z | 30.2mm |
| n | 9mm |
| m | 21.2mm |
| Bi | 43.7mm |
| k | 60.3mm |
| H | 18.3mm |
| G | 6.5mm |
| h | 6mm |
| Grub screw | 5/16"-24UNF |
| Weight | 0.67 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
