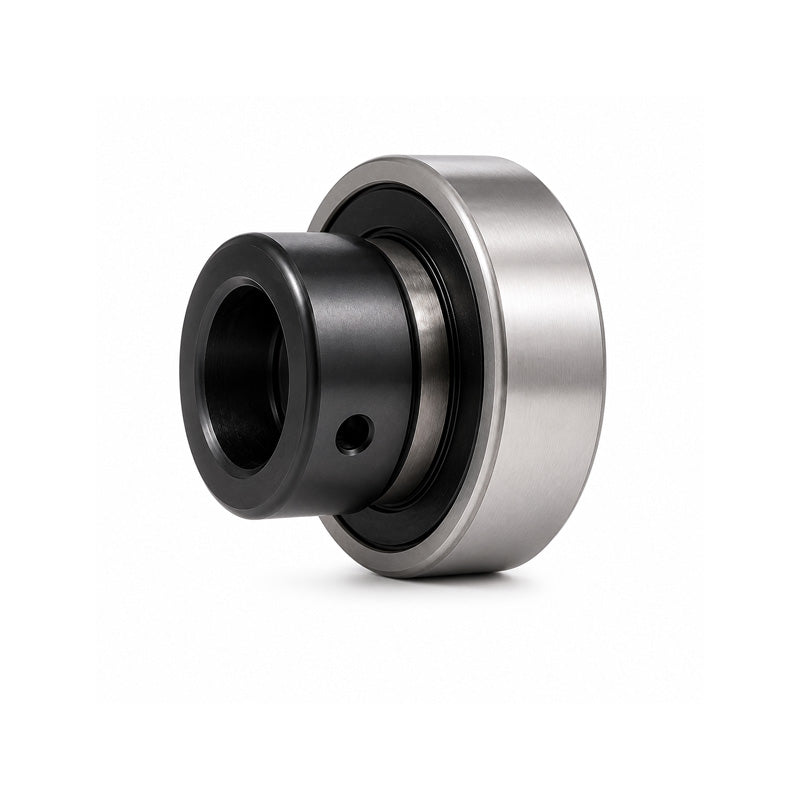

CSA210 Metric Bearing Insert with Locking Collar 50mm Bore 90mm Outside Dia
CSA210 Metric Bearing Insert with Locking Collar 50mm Bore 90mm Outside Dia
Regular price
CHF 32.00
ex VAT
Regular price
Sale price
CHF 32.00
ex VAT
In stock
Price Break
3+
CHF 25.43
4+
CHF 24.00
9+
CHF 23.71
19+
CHF 23.43
49+
CHF 23.14
99+
CHF 22.86
499+
CHF 21.43
999+
CHF 21.14
1999+
CHF 20.86
2999+
CHF 20.57
4999+
CHF 20.00
Share this product
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Style:
- CSA
Technical
Technical

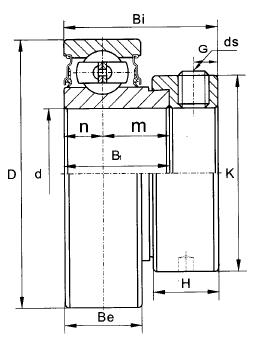

| d | 50mm |
|---|---|
| Be | 20mm |
| D | 90mm |
| z | 30.2mm |
| n | 10mm |
| m | 20.2mm |
| Bi | 43.7mm |
| k | 69.9mm |
| H | 18.3mm |
| G | 6.5mm |
| h | 6.5mm |
| Grub screw | M8X1.0 |
| Weight | 0.83 kg |
| Dynamic load | 3500 kgf |
| Static load | 2300 kgf |
