SKU: CSA.212

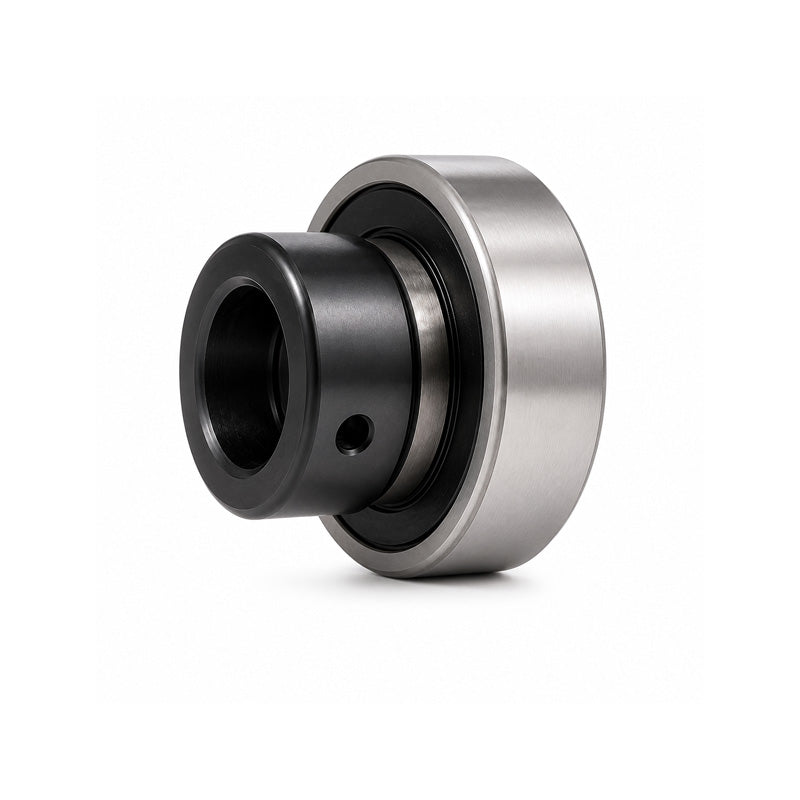

CSA212 Metric Bearing Insert with Locking Collar 60mm Bore 110mm Outside Dia
CSA212 Metric Bearing Insert with Locking Collar 60mm Bore 110mm Outside Dia
Regular price
CHF 42.05
ex VAT
Regular price
Sale price
CHF 42.05
ex VAT
In stock
Price Break
10+
CHF 37.42
19+
CHF 35.32
29+
CHF 34.90
39+
CHF 34.48
49+
CHF 34.06
74+
CHF 33.64
99+
CHF 31.54
199+
CHF 31.12
249+
CHF 30.70
499+
CHF 30.28
999+
CHF 29.44
Couldn't load pickup availability
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Style:
- CSA
Technical
Technical
| d | 60mm |
|---|---|
| Be | 24mm |
| D | 110mm |
| z | 33.4mm |
| n | 12mm |
| m | 21.4mm |
| Bi | 53.1mm |
| k | 84.2mm |
| H | 22.3mm |
| G | 8mm |
| h | 8mm |
| Grub screw | M10X1.0 |
| Weight | 1.3 kg |
| Dynamic load | 4850 kgf |
| Static load | 2960 kgf |
