SKU: CSB.206

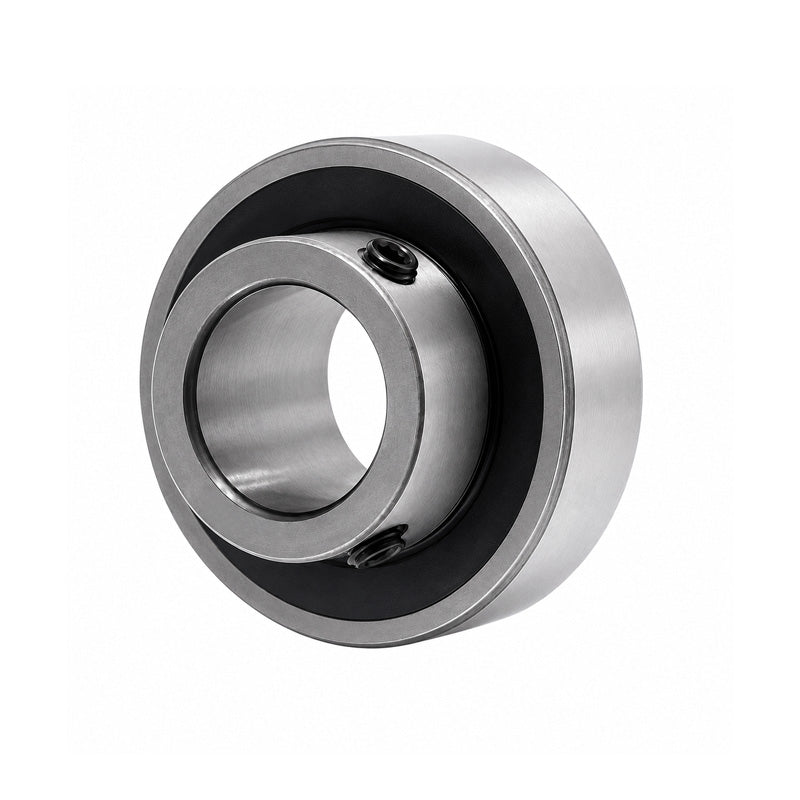

CSB206 Metric Bearing Insert with 30mm Bore 62mm Outside Dia
CSB206 Metric Bearing Insert with 30mm Bore 62mm Outside Dia
Regular price
CHF 12.66
ex VAT
Regular price
Sale price
CHF 12.66
ex VAT
In stock
Price Break
10+
CHF 11.27
19+
CHF 10.63
29+
CHF 10.51
39+
CHF 10.38
49+
CHF 10.25
74+
CHF 10.13
99+
CHF 9.50
199+
CHF 9.37
249+
CHF 9.24
499+
CHF 9.12
999+
CHF 8.86
Couldn't load pickup availability
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Style:
- CSB
Technical
Technical
| d | 30mm |
|---|---|
| Be | 16mm |
| D | 62mm |
| Bi | 30mm |
| n | 8mm |
| m | 22mm |
| G | 5.5mm |
| h | 5mm |
| Grub screw | M6X1.0 |
| Weight | 0.27 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
