SKU: CSB.208-24

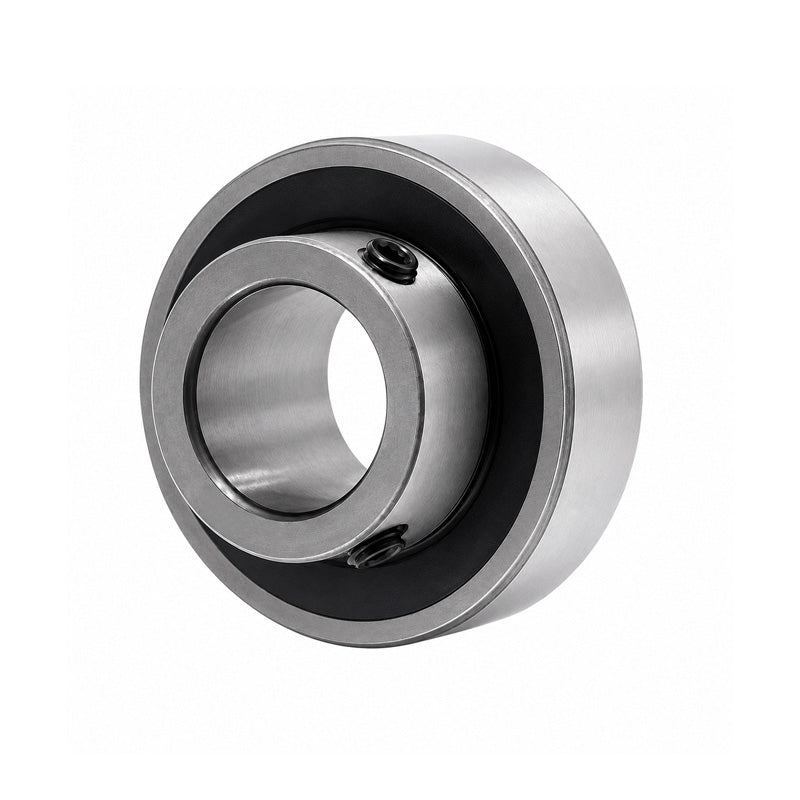

CSB208-24 Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
CSB208-24 Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
Regular price
CHF 12.00
ex VAT
Regular price
Sale price
CHF 12.00
ex VAT
In stock
Price Break
3+
CHF 9.46
4+
CHF 8.93
9+
CHF 8.82
19+
CHF 8.72
49+
CHF 8.61
99+
CHF 8.50
499+
CHF 7.97
999+
CHF 7.87
1999+
CHF 7.76
2999+
CHF 7.65
4999+
CHF 7.44
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
- Style:
- CSB
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| Be | 18mm |
| D | 80mm |
| Bi | 34mm |
| n | 9mm |
| m | 25mm |
| G | 7mm |
| h | 6mm |
| Grub screw | 5/16-24 UNF |
| Weight | 0.6 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
