SKU: CSK.25.2RS.EU

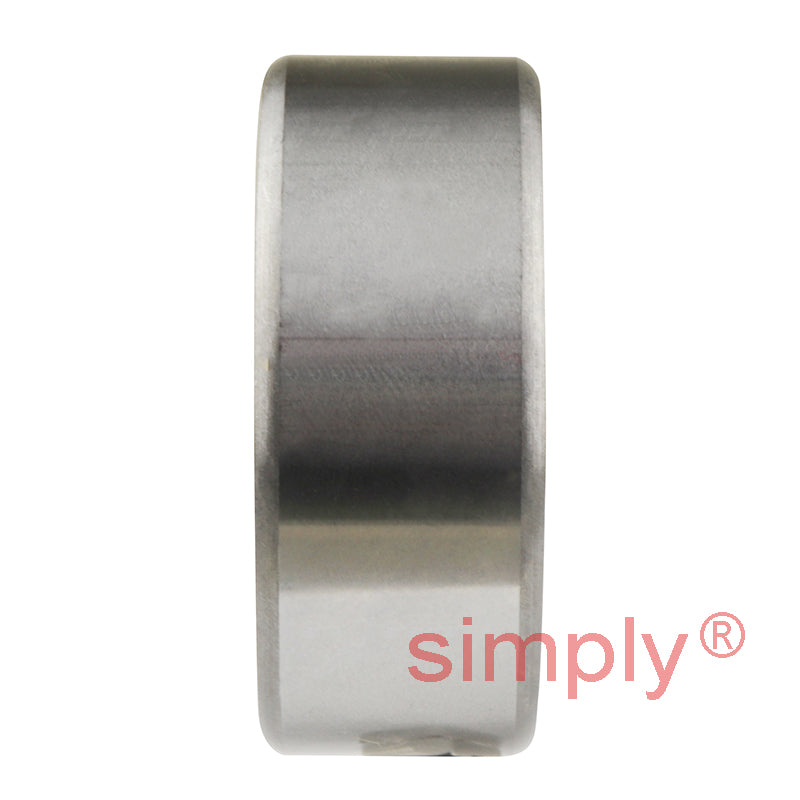

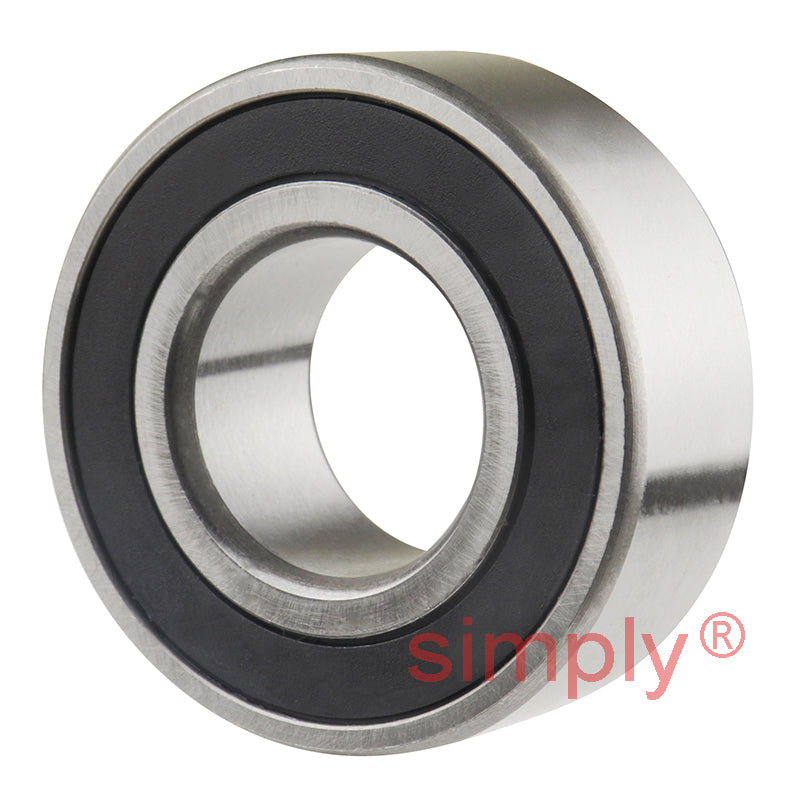

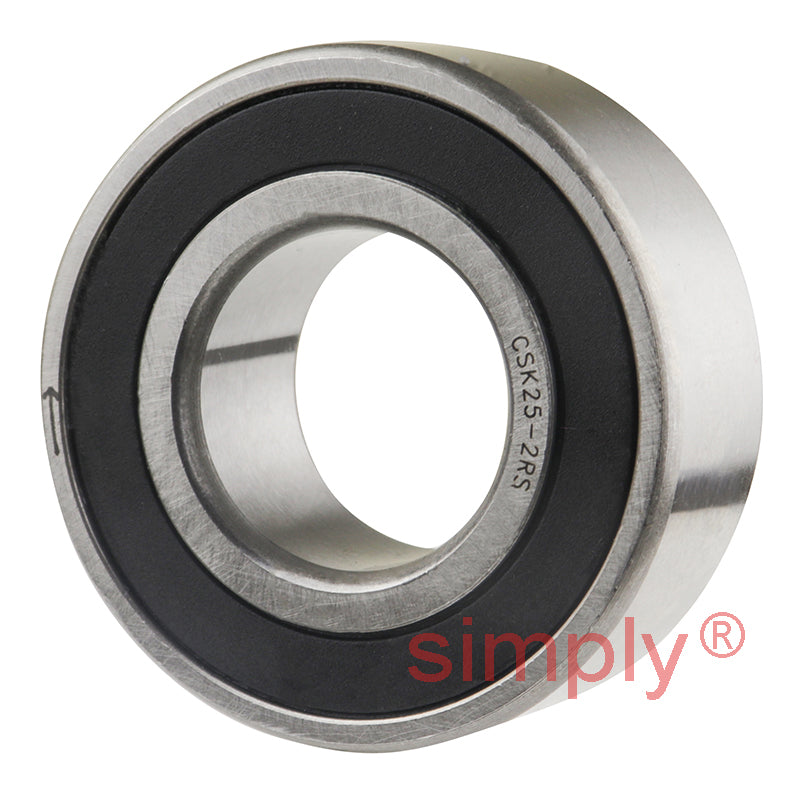

CSK252RS 25mm Sealed Sprag Clutch One Way Bearing Without Keyways 25x52x20mm
CSK252RS 25mm Sealed Sprag Clutch One Way Bearing Without Keyways 25x52x20mm
Regular price
CHF 23.00
ex VAT
Regular price
Sale price
CHF 23.00
ex VAT
In stock
Price Break
10+
CHF 18.30
19+
CHF 17.27
29+
CHF 17.06
39+
CHF 16.86
49+
CHF 16.65
74+
CHF 16.45
99+
CHF 15.42
199+
CHF 15.21
249+
CHF 15.01
499+
CHF 14.80
999+
CHF 14.39
Description
Description
|
CSK Series: This range of clutches can be used as freewheels and can be used in backstop, overrunning or indexing applications. Freewheel bearings are characterised by their ability to turn in one direction only and thus transmit torque whilst having a zero backlash They are supplied filled with grease and are low maintenance. The torque is transmitted on the inner and outer race by an interference fit into a rigid housing and onto a shaft. The tolerance for the housing fit is N6 and the tolerance for the shaft is n6. Operating temperature range: minus 40 deg F to plus 212 deg F or minus 40 deg C to plus 100 deg C Benefits: Cost effective replacement clutch bearing, low maintenance |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 20mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| L | 20mm |
| Torque Tkn | 85 Nm |
| n max | 5200 rpm |
| Dynamic load C | 10.7 kN |
| Static load Co | 5.46 kN |
| Weight | 0.175 kg |
| Drag Torque Tr | 6 Ncm |
