SKU: CSK.35PP.STB

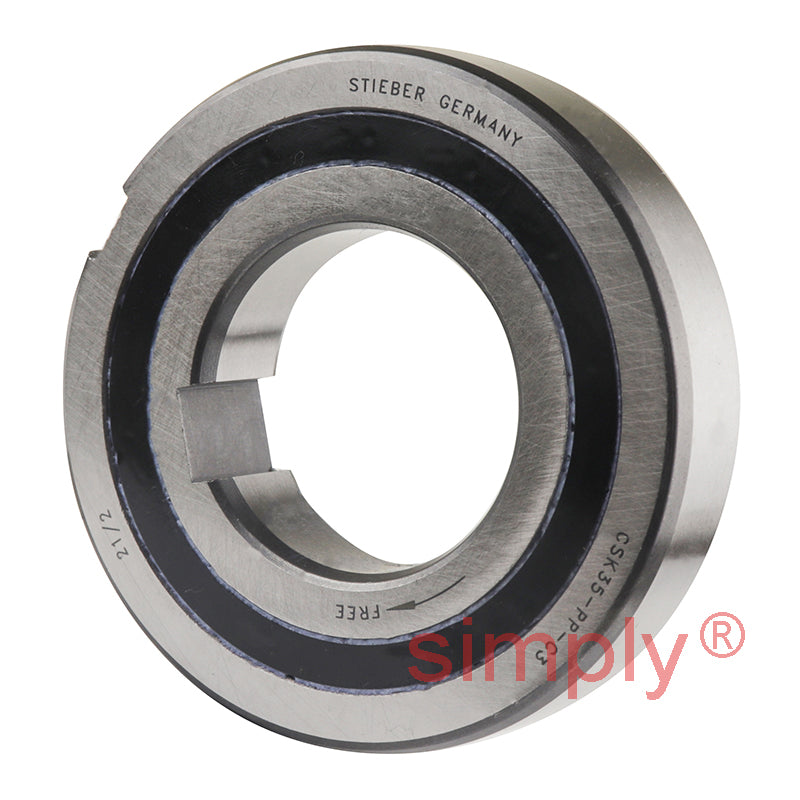

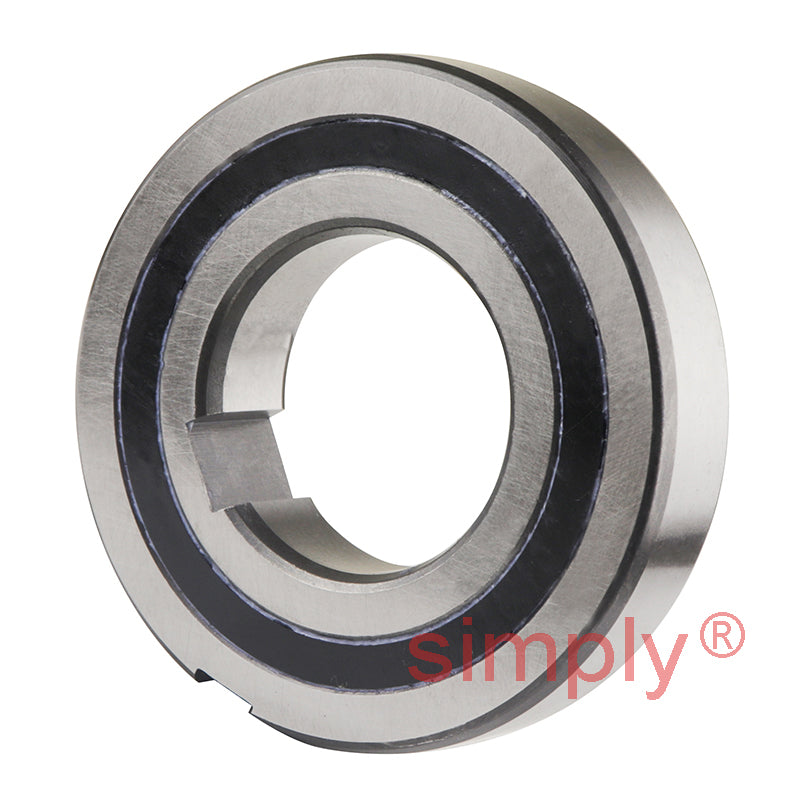

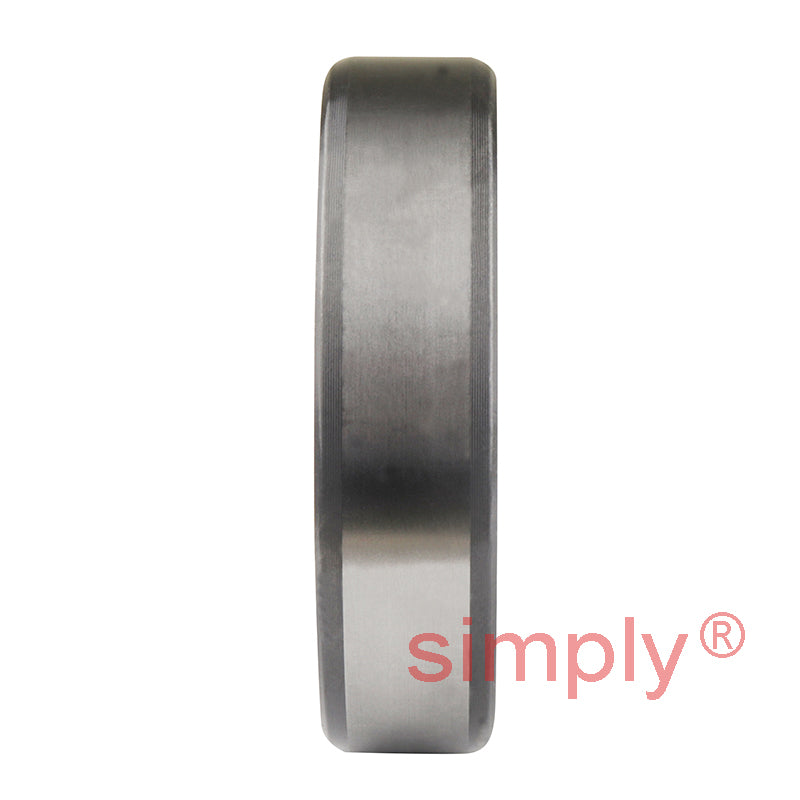

Stieber CSK35PP 35mm Sprag Clutch One Way Bearing with Internal and External Keyways 35x72x17mm
Stieber CSK35PP 35mm Sprag Clutch One Way Bearing with Internal and External Keyways 35x72x17mm
Regular price
CHF 129.00
ex VAT
Regular price
Sale price
CHF 129.00
ex VAT
In stock
Price Break
10+
CHF 102.57
19+
CHF 96.80
29+
CHF 95.65
39+
CHF 94.50
49+
CHF 93.35
74+
CHF 92.20
99+
CHF 86.43
199+
CHF 85.28
249+
CHF 84.13
499+
CHF 82.98
999+
CHF 80.67
Description
Description
|
CSK Series: This range of clutches can be used as freewheels and can be used in backstop, overrunning or indexing applications. Freewheel bearings are characterised by their ability to turn in one direction only and thus transmit torque whilst having a zero backlash. They are supplied filled with grease and are low maintenance. The torque is transmitted on the inner and outer race by an external key way to the housing and onto the shaft by an internal key way. Operating temperature range: minus 40 deg F to plus 212 deg F or minus 40 deg C to plus 100 deg C Benefits: Cost effective replacement clutch bearing, low maintenance, Internally keyed |
- Brand / Quality:
- Stieber - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| L | 17mm |
| Torque Tkn | 175 Nm |
| n max | 3600 rpm |
| a min | 10mm |
| k min | 2.5mm |
| b min | 8mm |
| t min | 2.5mm |
| Dynamic load C | 12.6 kN |
| Static load Co | 7.28 kN |
| Weight | 0.3 kg |
| Drag Torque Tr | 5.8 Ncm |
