SKU: CSK.40PP.STB

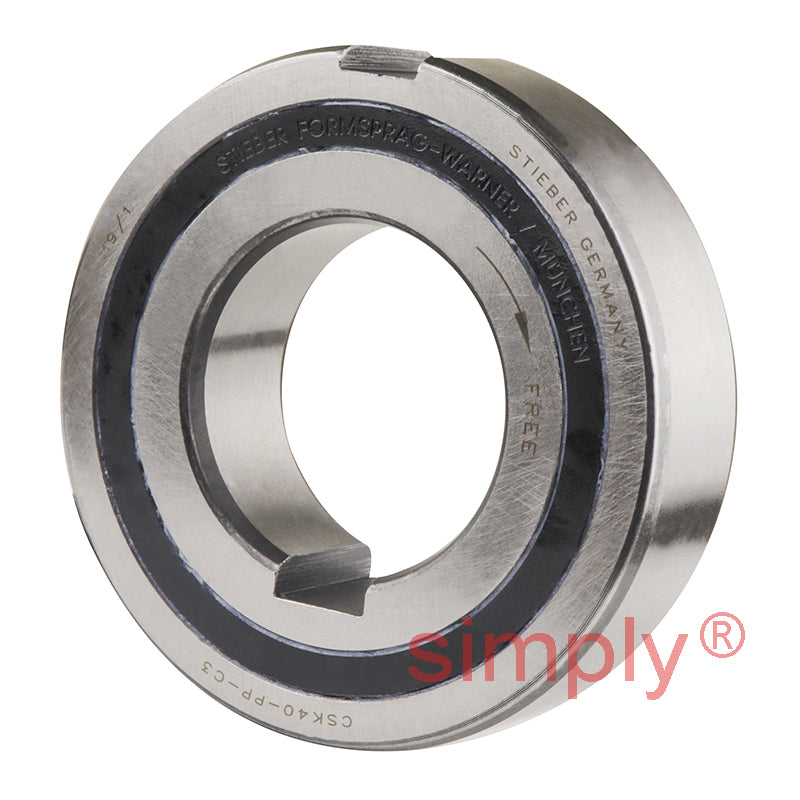

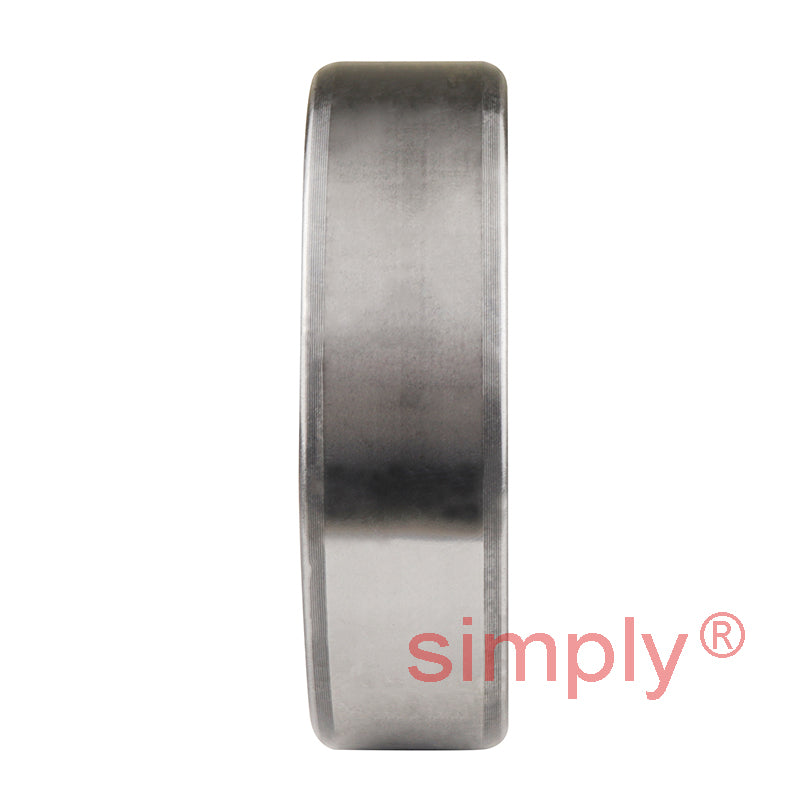

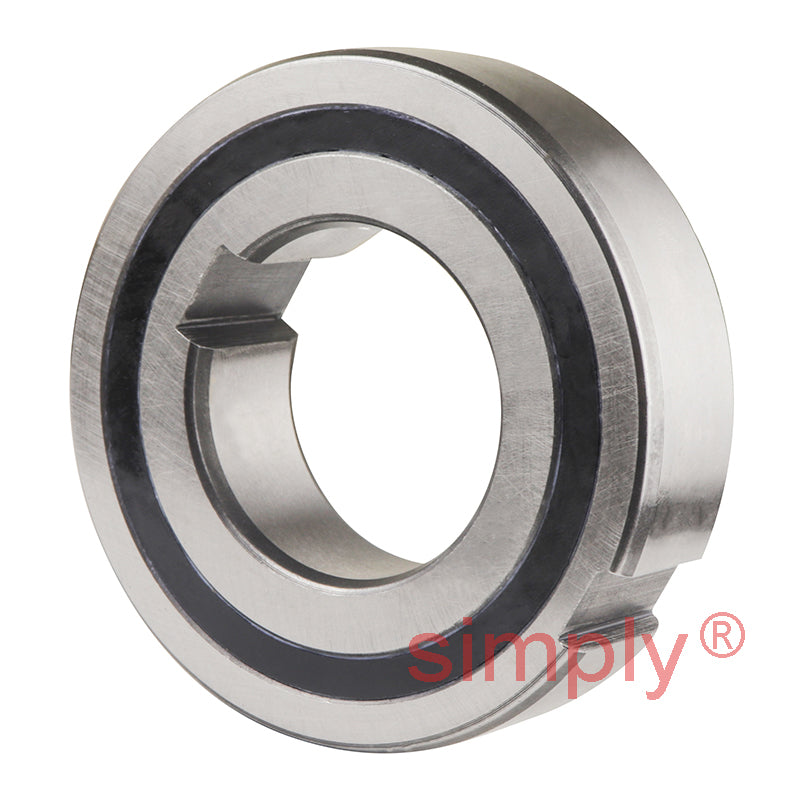

Stieber CSK40PP 40mm Sprag Clutch One Way Bearing with Internal and External Keyways 40x80x22mm
Stieber CSK40PP 40mm Sprag Clutch One Way Bearing with Internal and External Keyways 40x80x22mm
Regular price
CHF 168.00
ex VAT
Regular price
Sale price
CHF 168.00
ex VAT
Equivalent to: CSK.40PP.C3,CSK40PPC3
In stock
Price Break
10+
CHF 133.59
19+
CHF 126.08
29+
CHF 124.58
39+
CHF 123.08
49+
CHF 121.58
74+
CHF 120.08
99+
CHF 112.58
199+
CHF 111.07
249+
CHF 109.57
499+
CHF 108.07
999+
CHF 105.07
Description
Description
|
CSK Series: This range of clutches can be used as freewheels and can be used in backstop, overrunning or indexing applications. Freewheel bearings are characterised by their ability to turn in one direction only and thus transmit torque whilst having a zero backlash. They are supplied filled with grease and are low maintenance. The torque is transmitted on the inner and outer race by an external key way to the housing and onto the shaft by an internal key way. Operating temperature range: minus 40 deg F to plus 212 deg F or minus 40 deg C to plus 100 deg C Benefits: Cost effective replacement clutch bearing, low maintenance, Internally keyed |
Equivalent: CSK.40PP.C3,CSK40PPC3
- Brand / Quality:
- Stieber - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 22mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| L | 22mm |
| Torque Tkn | 325 Nm |
| n max | 3000 rpm |
| a min | 12mm |
| k min | 4mm |
| b min | 10mm |
| t min | 2.7mm |
| Dynamic load C | 15.54 kN |
| Static load Co | 12.25 kN |
| Weight | 0.5 kg |
| Drag Torque Tr | 7 Ncm |
