SKU: CUC204

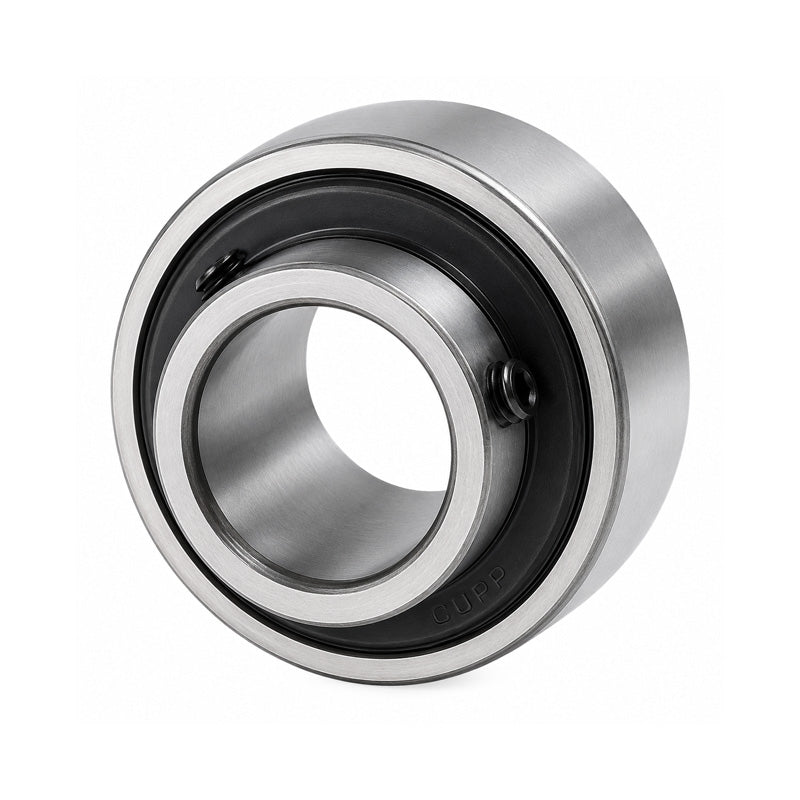

CUC204 Metric Cylindrical Bearing Insert with 20mm Bore 47mm Outside Dia
CUC204 Metric Cylindrical Bearing Insert with 20mm Bore 47mm Outside Dia
Regular price
CHF 8.00
ex VAT
Regular price
Sale price
CHF 8.00
ex VAT
Equivalent to: UR204 RB204
In stock
Price Break
3+
CHF 5.59
4+
CHF 5.28
9+
CHF 5.22
19+
CHF 5.15
49+
CHF 5.09
99+
CHF 5.03
499+
CHF 4.71
999+
CHF 4.65
1999+
CHF 4.59
2999+
CHF 4.52
4999+
CHF 4.40
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR204 RB204
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| N | 12.7mm |
| M | 18.3mm |
| G | 4.8mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 12800 N |
| Static Load | 6650 N |
| Weight | 0.16 kg |
