SKU: CUC204-12

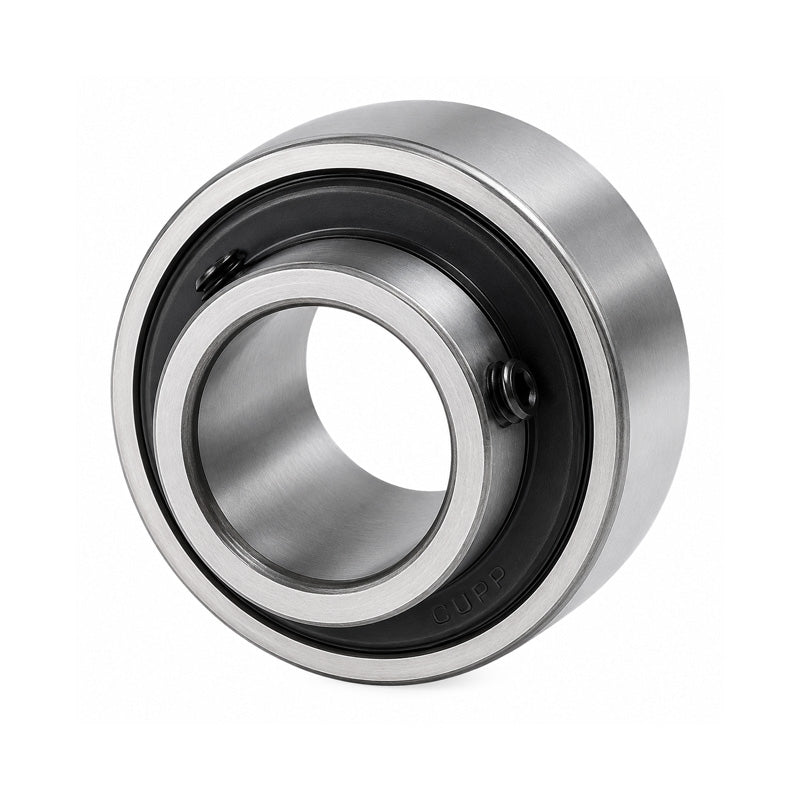

CUC204-12 Imperial Cylindrical Bearing Insert with 3/4 inch Bore 47mm Outside Dia
CUC204-12 Imperial Cylindrical Bearing Insert with 3/4 inch Bore 47mm Outside Dia
Regular price
CHF 8.00
ex VAT
Regular price
Sale price
CHF 8.00
ex VAT
Equivalent to: UR204-12 RB204-12
In stock
Price Break
3+
CHF 5.59
4+
CHF 5.28
9+
CHF 5.22
19+
CHF 5.15
49+
CHF 5.09
99+
CHF 5.03
499+
CHF 4.71
999+
CHF 4.65
1999+
CHF 4.59
2999+
CHF 4.52
4999+
CHF 4.40
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR204-12 RB204-12
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
Technical
Technical
| d | 3/4 inch |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| N | 12.7mm |
| M | 18.3mm |
| G | 4.8mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 12800 N |
| Static Load | 6650 N |
| Weight | 0.16 kg |
