SKU: CUC205

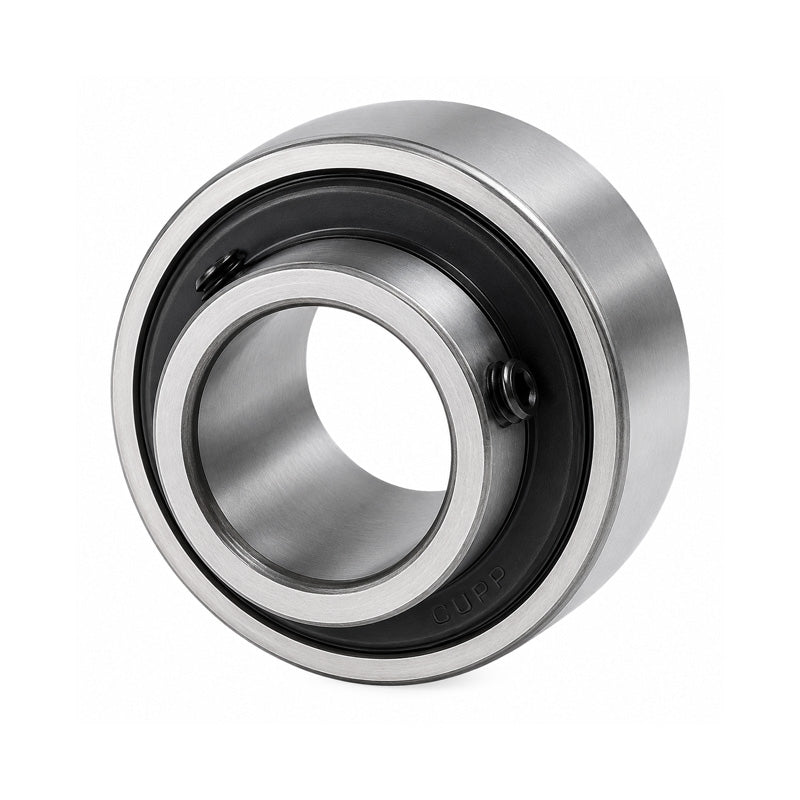

CUC205 Metric Cylindrical Bearing Insert with 25mm Bore 52mm Outside Dia
CUC205 Metric Cylindrical Bearing Insert with 25mm Bore 52mm Outside Dia
Regular price
CHF 8.00
ex VAT
Regular price
Sale price
CHF 8.00
ex VAT
Equivalent to: UR205 RB205
In stock
Price Break
3+
CHF 5.83
4+
CHF 5.50
9+
CHF 5.44
19+
CHF 5.37
49+
CHF 5.30
99+
CHF 5.24
499+
CHF 4.91
999+
CHF 4.85
1999+
CHF 4.78
2999+
CHF 4.71
4999+
CHF 4.58
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR205 RB205
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| Bi | 34.1mm |
| Be | 17mm |
| N | 14.3mm |
| M | 19.8mm |
| G | 5mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 140000 N |
| Static Load | 7850 N |
| Weight | 0.2 kg |
