SKU: CUC205-14

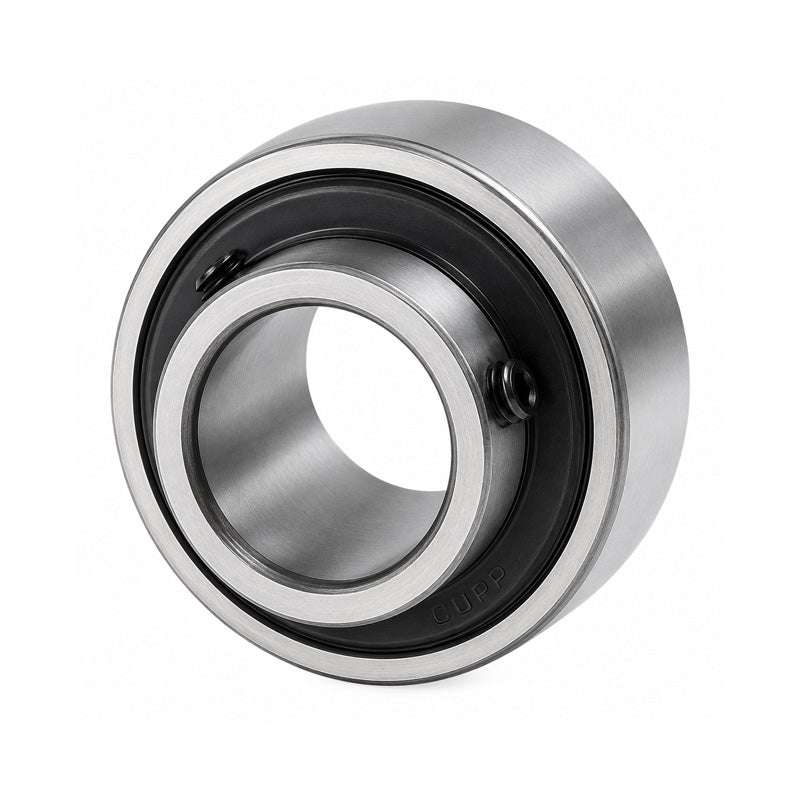

CUC205-14 Imperial Cylindrical Bearing Insert with 7/8 inch Bore 52mm Outside Dia - Allow 2-3 Days
CUC205-14 Imperial Cylindrical Bearing Insert with 7/8 inch Bore 52mm Outside Dia - Allow 2-3 Days
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
Equivalent to: UR205-14 RB205-14
In stock
Price Break
3+
CHF 5.46
4+
CHF 5.24
9+
CHF 5.13
19+
CHF 4.97
49+
CHF 4.86
99+
CHF 4.58
499+
CHF 3.86
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR205-14 RB205-14
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 52mm
Technical
Technical
| d | 7/8 inch |
|---|---|
| D | 52mm |
| Bi | 34.1mm |
| Be | 17mm |
| N | 14.3mm |
| M | 19.8mm |
| G | 5mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 140000 N |
| Static Load | 7850 N |
| Weight | 0.23 kg |
