SKU: CUC205-15-SNR

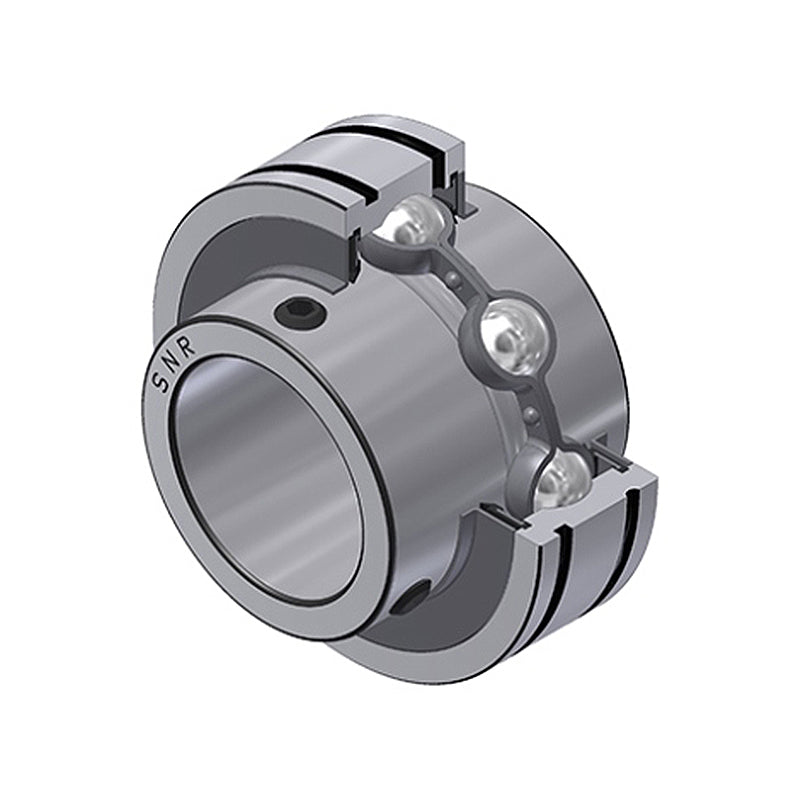

SNR CUC205-15 Imperial Full Width Grooved Parallel Outer Bearing Insert 15/16 inch Bore 52mm Outside Diameter with Grub Screws
SNR CUC205-15 Imperial Full Width Grooved Parallel Outer Bearing Insert 15/16 inch Bore 52mm Outside Diameter with Grub Screws
Regular price
CHF 16.99
ex VAT
Regular price
Sale price
CHF 16.99
ex VAT
In stock
Price Break
10+
CHF 15.12
19+
CHF 14.27
29+
CHF 14.10
39+
CHF 13.93
49+
CHF 13.76
74+
CHF 13.59
99+
CHF 12.74
199+
CHF 12.57
249+
CHF 12.40
499+
CHF 12.23
999+
CHF 11.89
Couldn't load pickup availability
Description
Description
SNR CUC Full Width Parallel Outer Bearing Insert with Grub Screws: This bearing insert is tailored for applications requiring axial fixation and lubrication capabilities, not suitable for standard housings with spherical bearing seats. It includes a cylindrical outer ring with a snap ring groove and lubrication hole. Each steel insert is equipped with a single lip seal and slinger on both sides, featuring a wide inner ring design for enhanced stability and performance.
Benefits: High-quality brand, high-performance, precision-engineered
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- 1/4-28UNF
- Inside Diameter:
- 23.813mm = 0.937 (15/16) inch
- Outside Diameter:
- 52mm
- Width:
- 34mm
- Style:
- CUC
Technical
Technical
| d | 15/16 inch |
|---|---|
| d | 23.813mm |
| D | 52mm |
| C | 17mm |
| B | 34mm |
| S | 14.3mm |
| a | 3.2mm |
| b | 1.35mm |
| N1 | 49.73mm |
| m | 5mm |
| C1 | 4mm |
| r min | 0.6mm |
| G | 1/4-28UNF |
| Wrench Size | 1/8 inch |
| Set screw torque | 3.7 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 14kN |
| Static load rating C0 | 7.9kN |
| Weight | 0.2kg |
