SKU: CUC205-16

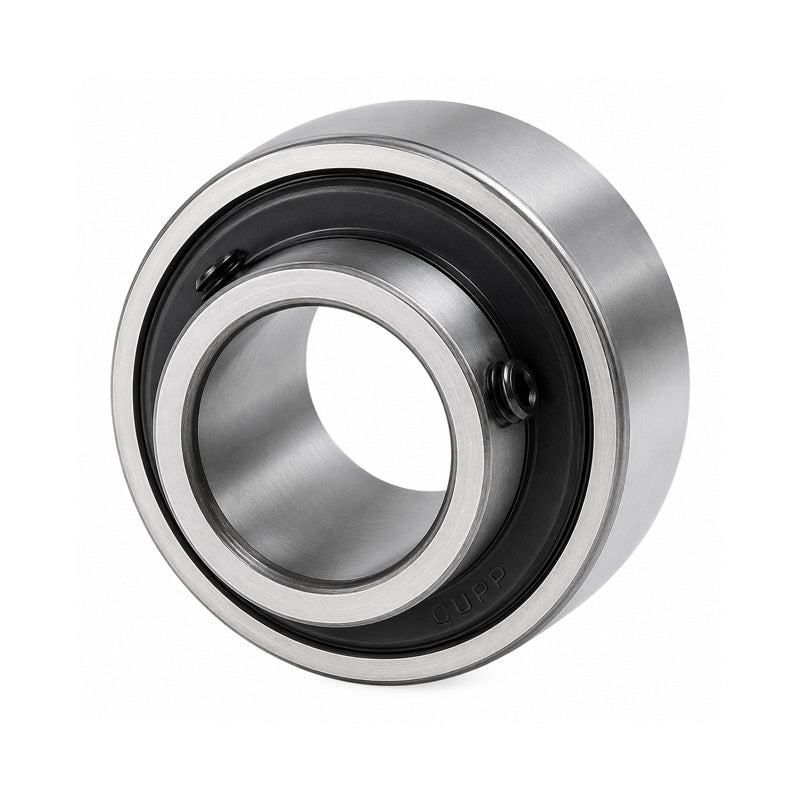

CUC205-16 Imperial Cylindrical Bearing Insert with 1 inch Bore 52mm Outside Dia
CUC205-16 Imperial Cylindrical Bearing Insert with 1 inch Bore 52mm Outside Dia
Regular price
CHF 9.00
ex VAT
Regular price
Sale price
CHF 9.00
ex VAT
Equivalent to: UR205-16 RB205-16
Low stock
Price Break
3+
CHF 6.55
4+
CHF 6.18
9+
CHF 6.11
19+
CHF 6.04
49+
CHF 5.96
99+
CHF 5.89
499+
CHF 5.52
999+
CHF 5.45
1999+
CHF 5.37
2999+
CHF 5.30
4999+
CHF 5.15
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR205-16 RB205-16
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 (1) inch
- Outside Diameter:
- 52mm
Technical
Technical
| d | 1 inch |
|---|---|
| D | 52mm |
| Bi | 34.1mm |
| Be | 17mm |
| N | 14.3mm |
| M | 19.8mm |
| G | 5mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 140000 N |
| Static Load | 7850 N |
| Weight | 0.2 kg |
