SKU: CUC207

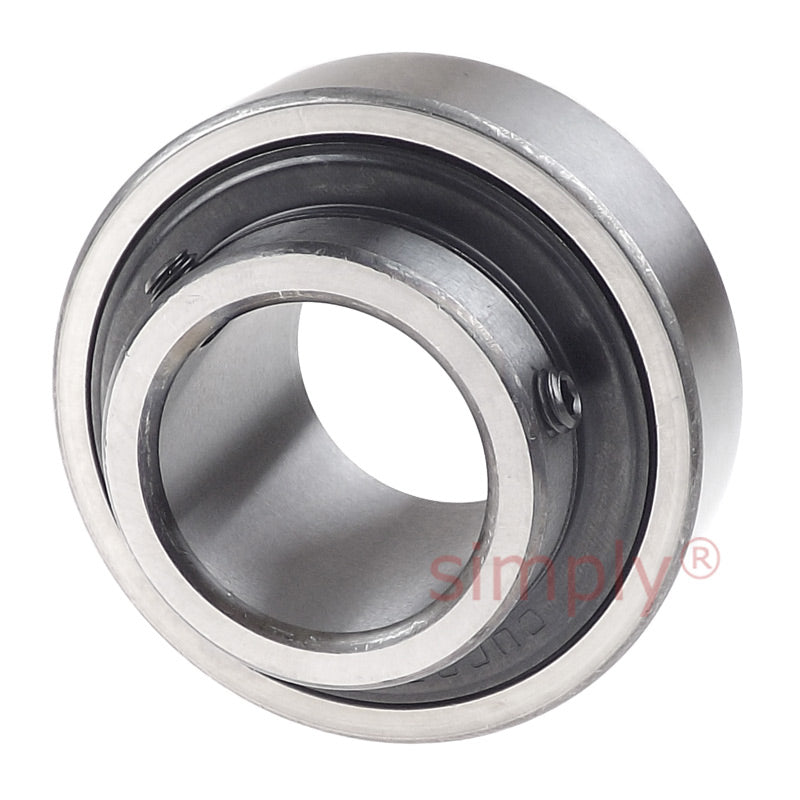

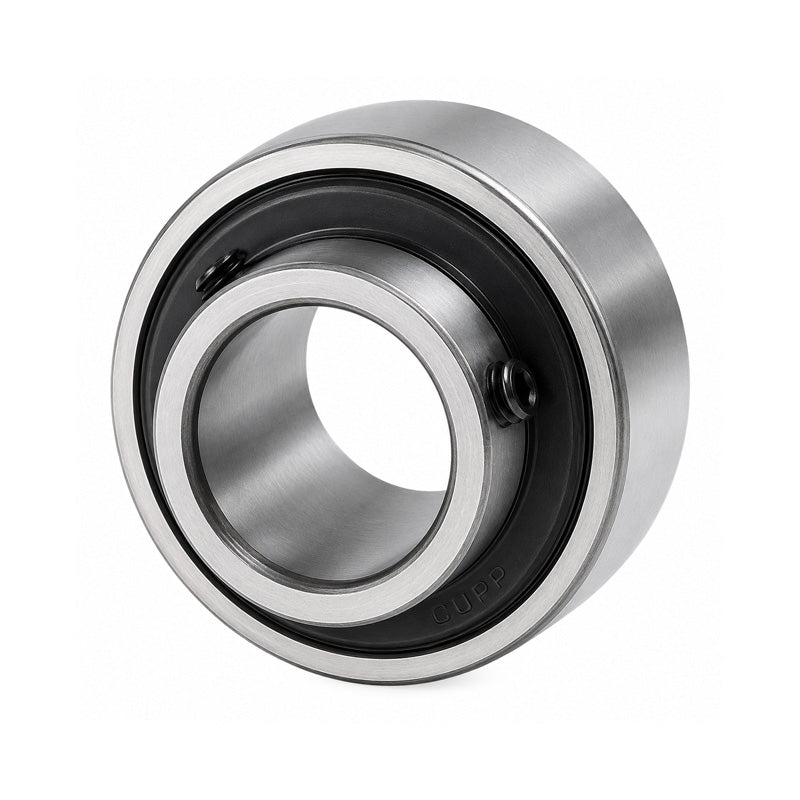

CUC207 Metric Cylindrical Bearing Insert with 35mm Bore 72mm Outside Dia
CUC207 Metric Cylindrical Bearing Insert with 35mm Bore 72mm Outside Dia
Regular price
CHF 12.00
ex VAT
Regular price
Sale price
CHF 12.00
ex VAT
Equivalent to: UR207 RB207
In stock
Price Break
3+
CHF 9.49
4+
CHF 8.95
9+
CHF 8.85
19+
CHF 8.74
49+
CHF 8.63
99+
CHF 8.53
499+
CHF 7.99
999+
CHF 7.89
1999+
CHF 7.78
2999+
CHF 7.67
4999+
CHF 7.46
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR207 RB207
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| N | 17.5mm |
| M | 25.4mm |
| G | 7mm |
| ds | M8x1, 5/16-24UNF |
| Dynamic Load | 25700 N |
| Static Load | 15300 N |
| Weight | 0.48 kg |
