SKU: CUC207-23-SNR

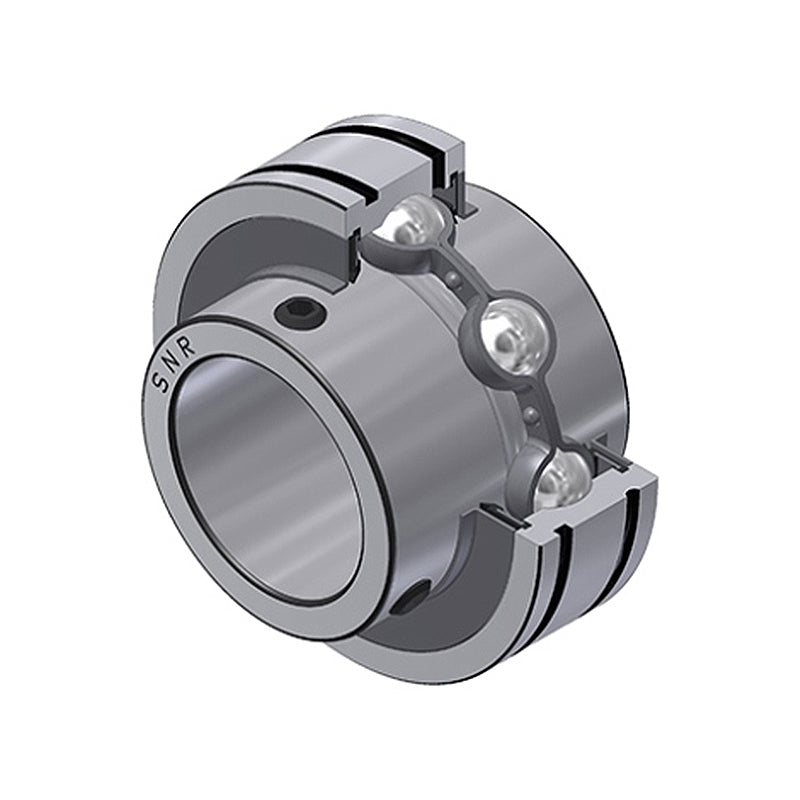

SNR CUC207-23 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-7/16 inch Bore 72mm Outside Diameter with Grub Screws
SNR CUC207-23 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-7/16 inch Bore 72mm Outside Diameter with Grub Screws
Regular price
CHF 25.49
ex VAT
Regular price
Sale price
CHF 25.49
ex VAT
In stock
Price Break
10+
CHF 22.69
19+
CHF 21.41
29+
CHF 21.16
39+
CHF 20.90
49+
CHF 20.65
74+
CHF 20.39
99+
CHF 19.12
199+
CHF 18.86
249+
CHF 18.61
499+
CHF 18.35
999+
CHF 17.84
Couldn't load pickup availability
Description
Description
SNR CUC Full Width Parallel Outer Bearing Insert with Grub Screws: This bearing insert is tailored for applications requiring axial fixation and lubrication capabilities, not suitable for standard housings with spherical bearing seats. It includes a cylindrical outer ring with a snap ring groove and lubrication hole. Each steel insert is equipped with a single lip seal and slinger on both sides, featuring a wide inner ring design for enhanced stability and performance.
Benefits: High-quality brand, high-performance, precision-engineered
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- 5/16-24UNF
- Inside Diameter:
- 36.513mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 72mm
- Width:
- 42.9mm
- Style:
- CUC
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| d | 36.513mm |
| D | 72mm |
| C | 20mm |
| B | 42.9mm |
| S | 17.5mm |
| a | 3.3mm |
| b | 1.9mm |
| N1 | 68.81mm |
| m | 6.5mm |
| C1 | 5mm |
| r min | 1.1mm |
| G | 5/16-24UNF |
| Wrench Size | 5/32 inch |
| Set screw torque | 8 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 25.7kN |
| Static load rating C0 | 15.2kN |
| Weight | 0.5kg |
