SKU: CUC208-24-SNR

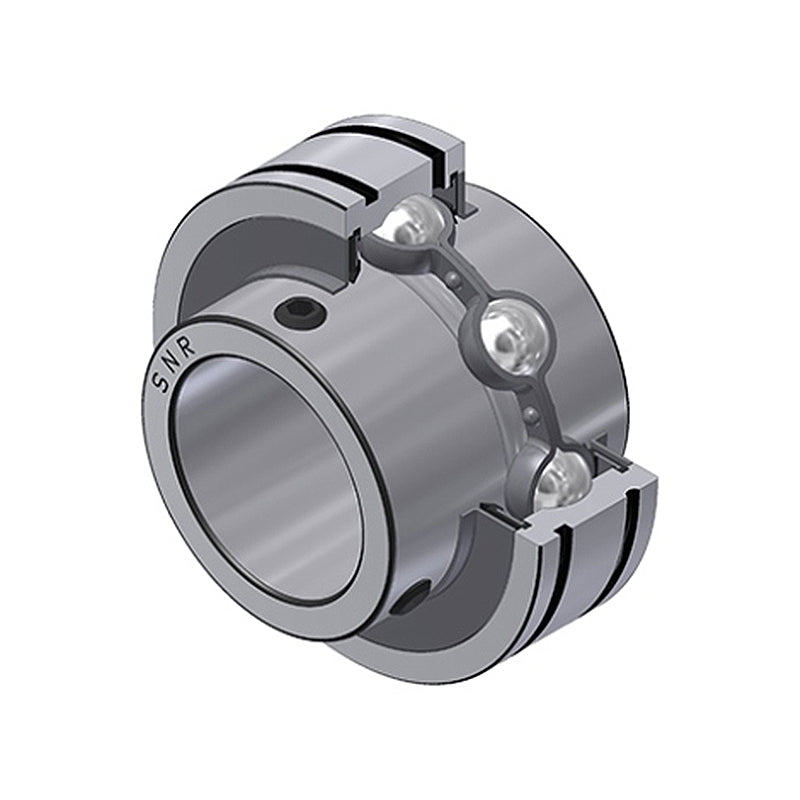

SNR CUC208-24 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter with Grub Screws
SNR CUC208-24 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter with Grub Screws
Regular price
CHF 27.09
ex VAT
Regular price
Sale price
CHF 27.09
ex VAT
In stock
Price Break
10+
CHF 24.11
19+
CHF 22.76
29+
CHF 22.48
39+
CHF 22.21
49+
CHF 21.94
74+
CHF 21.67
99+
CHF 20.32
199+
CHF 20.05
249+
CHF 19.78
499+
CHF 19.50
999+
CHF 18.96
Couldn't load pickup availability
Description
Description
SNR CUC Full Width Parallel Outer Bearing Insert with Grub Screws: This bearing insert is tailored for applications requiring axial fixation and lubrication capabilities, not suitable for standard housings with spherical bearing seats. It includes a cylindrical outer ring with a snap ring groove and lubrication hole. Each steel insert is equipped with a single lip seal and slinger on both sides, featuring a wide inner ring design for enhanced stability and performance.
Benefits: High-quality brand, high-performance, precision-engineered
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- 5/16-24UNF
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
- Width:
- 49.2mm
- Style:
- CUC
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| d | 38.1mm |
| D | 80mm |
| C | 21mm |
| B | 49.2mm |
| S | 19mm |
| a | 3.4mm |
| b | 1.9mm |
| N1 | 76.81mm |
| m | 8mm |
| C1 | 5mm |
| r min | 1.1mm |
| G | 5/16-24UNF |
| Wrench Size | 5/32 inch |
| Set screw torque | 8 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 32.6kN |
| Static load rating C0 | 19.9kN |
| Weight | 0.7kg |
