SKU: CUC211

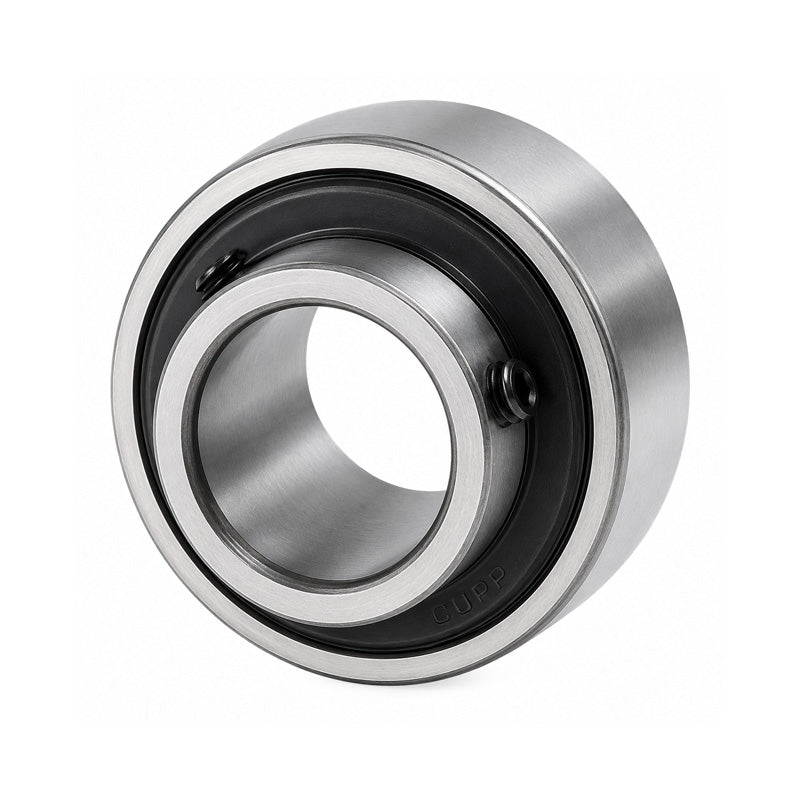

CUC211 Metric Cylindrical Bearing Insert with 55mm Bore 100mm Outside Dia
CUC211 Metric Cylindrical Bearing Insert with 55mm Bore 100mm Outside Dia
Regular price
CHF 27.00
ex VAT
Regular price
Sale price
CHF 27.00
ex VAT
Equivalent to: UR211 RB211
In stock
Price Break
3+
CHF 20.77
4+
CHF 19.60
9+
CHF 19.37
19+
CHF 19.14
49+
CHF 18.90
99+
CHF 18.67
499+
CHF 17.50
999+
CHF 17.27
1999+
CHF 17.04
2999+
CHF 16.80
4999+
CHF 16.34
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR211 RB211
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| Bi | 55.6mm |
| Be | 25mm |
| N | 22.2mm |
| M | 33.4mm |
| G | 10mm |
| ds | M10x1, 3/8-24UNF |
| Dynamic Load | 43500 N |
| Static Load | 29200 N |
| Weight | 1.11 kg |
