SKU: CUC212

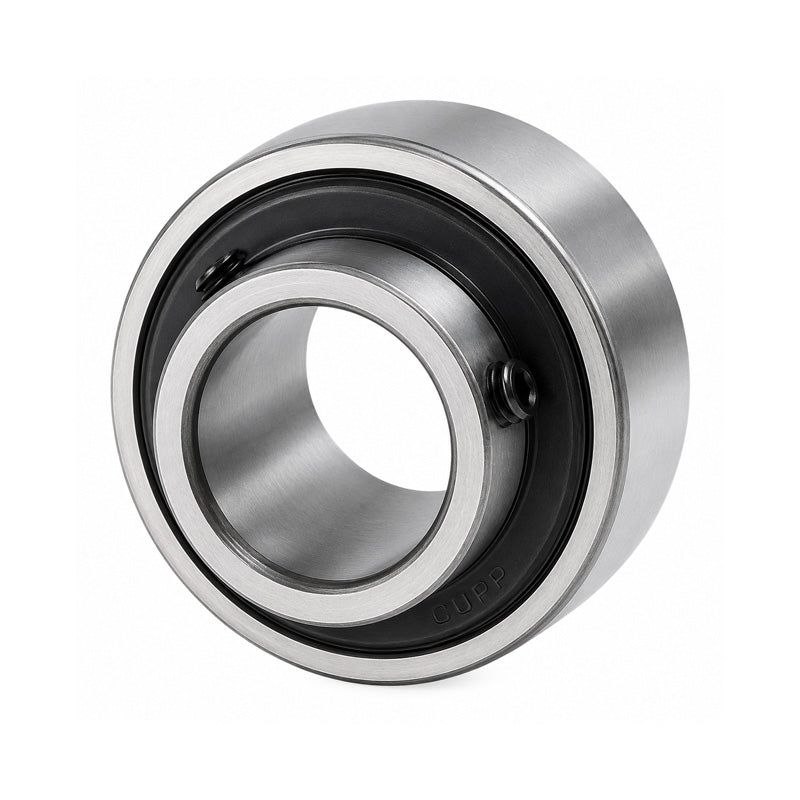

CUC212 Metric Cylindrical Bearing Insert with 60mm Bore 110mm Outside Dia
CUC212 Metric Cylindrical Bearing Insert with 60mm Bore 110mm Outside Dia
Regular price
CHF 28.00
ex VAT
Regular price
Sale price
CHF 28.00
ex VAT
Equivalent to: UR212 RB212
Low stock
Price Break
3+
CHF 21.54
4+
CHF 20.33
9+
CHF 20.09
19+
CHF 19.84
49+
CHF 19.60
99+
CHF 19.36
499+
CHF 18.15
999+
CHF 17.91
1999+
CHF 17.67
2999+
CHF 17.42
4999+
CHF 16.94
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR212 RB212
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 27mm |
| N | 25.4mm |
| M | 39.7mm |
| G | 10mm |
| ds | M10x1, 3/8-24UNF |
| Dynamic Load | 47700 N |
| Static Load | 32900 N |
| Weight | 1.54 kg |
