SKU: D1500-0240

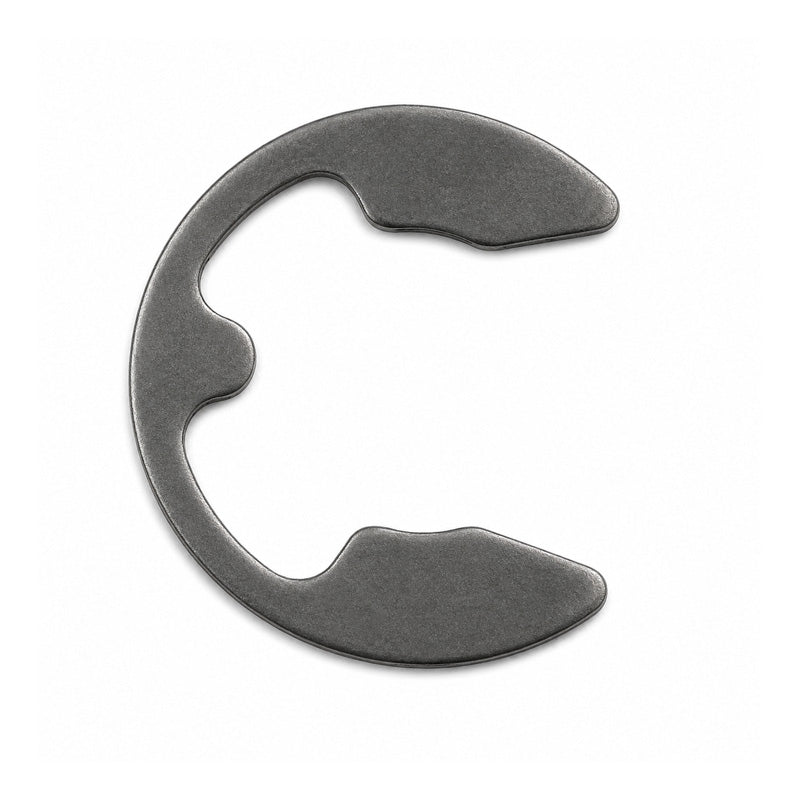

Sprung Carbon Steel E-Clip for 24mm Groove Diameter

Name: Sprung Carbon Steel E-Clip for 24mm Groove Diameter
Brand: Simply E-Clips
SKU: D1500-0240
Price: 1.00 CHF
Availability: InStock

CHF 1.00 ex VAT

Sale Sold out

Equivalent to: D1500-0240

In stock

Price Break

10+ CHF 0.47

20+ CHF 0.36

50+ CHF 0.26

100+ CHF 0.21

500+ CHF 0.17

1000+ CHF 0.13

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

E-Clips: The most common form of radial fitted circlips for shafts with grooves, provides a retaining shoulder on a relatively small shaft diameter. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil.
Note: The groove size is critical with this type of circlip, the shaft diameter can vary slightly. Please see technical tab for more information. The size of clip stated denotes the diameter of the groove into which it fits.
Benefits: Cost effective replacement, durable, removable.

Equivalent: D1500-0240

Brand / Quality:: Simply E-Clips - Economy Quality
Material:: Sprung Carbon Steel
Shaft Size:: 30mm
Thickness:: 2mm
Groove Diameter:: 24mm

Technical

---	Clip Dimensions
Shaft Size (d1)	30mm
Shaft Range	25mm to 38mm
Thickness (s)	2mm
Thickness Tolerance	±0.03mm
Max Outisde Diameter (d4)	43.5mm
Shoulder Length (n)	4mm
a	21.88mm
a Tolerance	±0.084mm
Weight	8.55kg
---	Speeds and Load Ratings
Max Fling Off Speed	6000rpm
---	Groove Requirements
Groove Diameter (d2)	24mm
Groove Diameter Tolerance	+0mm / -0.13mm
Groove Width (m)	2.05mm
Groove Depth (g)	3mm
