SKU: DGE16ES-DURB

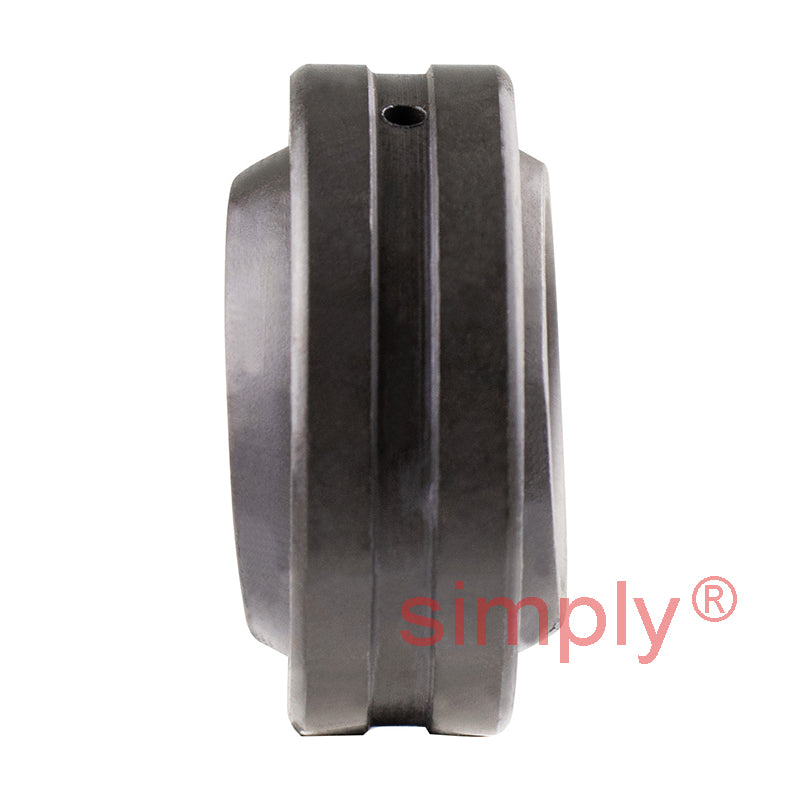

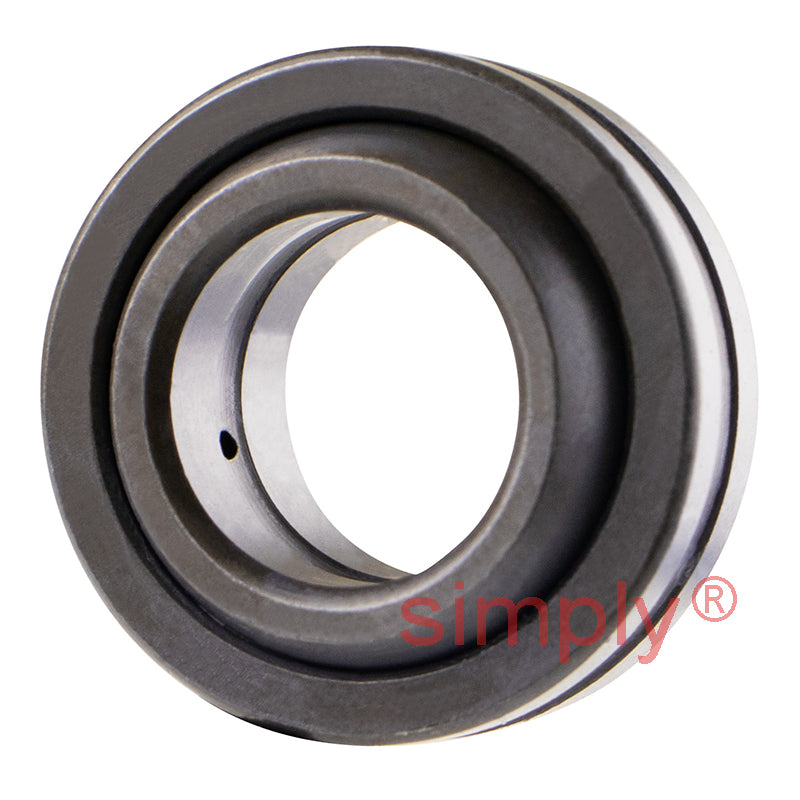

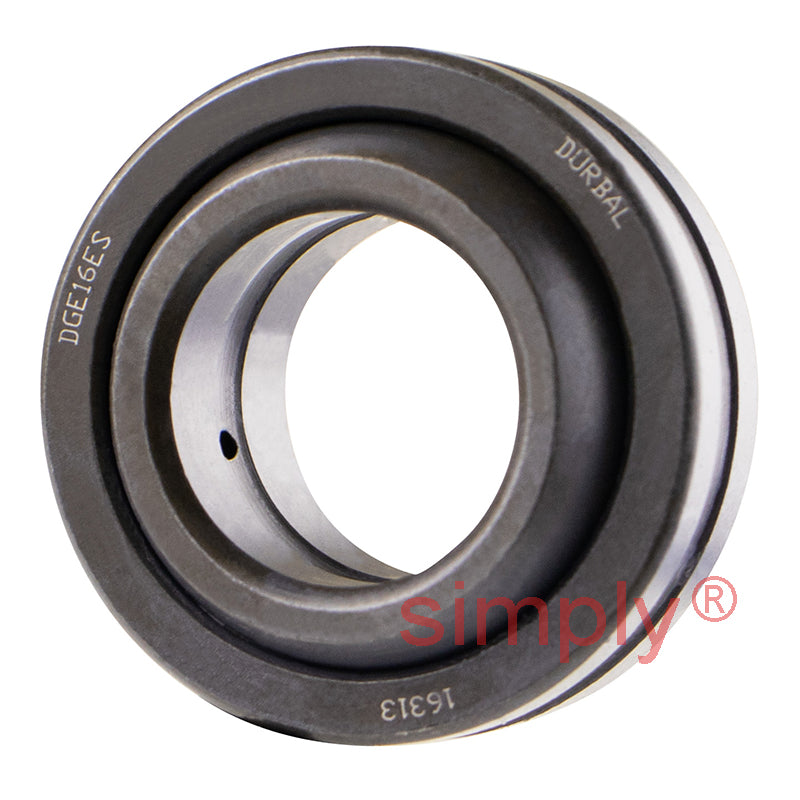

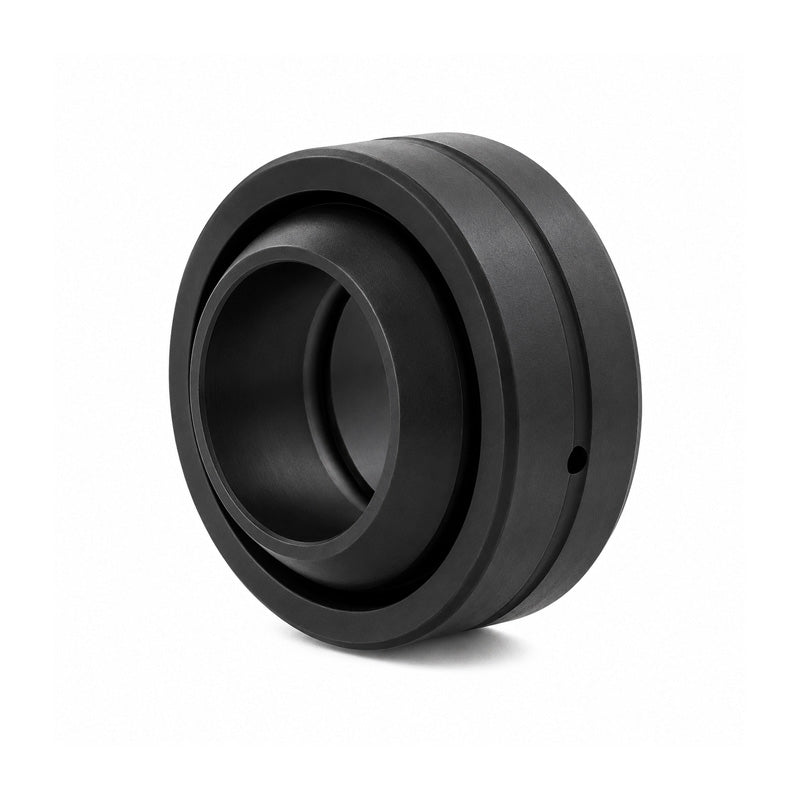

Durbal DGE16ES Maintenance Required Steel / Steel Spherical Plain Bearing 16x30x14mm
Durbal DGE16ES Maintenance Required Steel / Steel Spherical Plain Bearing 16x30x14mm
Regular price
CHF 8.00
ex VAT
Regular price
Sale price
CHF 8.00
ex VAT
In stock
Price Break
10+
CHF 6.03
19+
CHF 5.70
29+
CHF 5.63
39+
CHF 5.56
49+
CHF 5.49
74+
CHF 5.42
99+
CHF 5.09
199+
CHF 5.02
249+
CHF 4.95
499+
CHF 4.88
999+
CHF 4.75
Description
Description
DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with split, oil groove and drill holes. (Outer ring has a split from size 15) For use with high and alternating loads. Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 16mm
Technical
Technical
| d | 16mm |
|---|---|
| d1 | 19mm |
| D | 30mm |
| dk | 25mm |
| B | 14mm |
| C | 10mm |
| rs | 0.3mm |
| r1s | 0.3mm |
| tilt angle α | 10 deg |
| weight | 0.041kg |
| basic load rating dyn C | 21.2 kN |
| basic load rating stat Co | 106 kN |
| CN | 40-82 µm |
